Brand Ubiquiti
GPON customer-premises equipment (CPE) that pairs high performance with extremely low power consumption.
Out of stock
Projects & bulk orders
For corporate projects we offer discovery, BOM and installation support for Ubiquiti Fiber Loco. Build your quote list and send it in one go.
My quote list (0) · Compare
Who is it for?
- ISPs and WISPs
- Fiber infrastructure projects
- Metro Ethernet providers
Use cases
- Fiber deployments and refresh projects
- Central management and cloud control (UniFi / UISP)
- Scalable enterprise WiFi and switching
- Technical support and bulk supply
GPON customer-premises equipment (CPE) that pairs high performance with extremely low power consumption.
Mekanik
- Dimensions
- 76.5 x 76.5 x 26.4 mm (3 x 3 x 1")
- Weight
- 77 g (2.7 oz)
- Enclosure materil
- Polycarbonate
Donanım

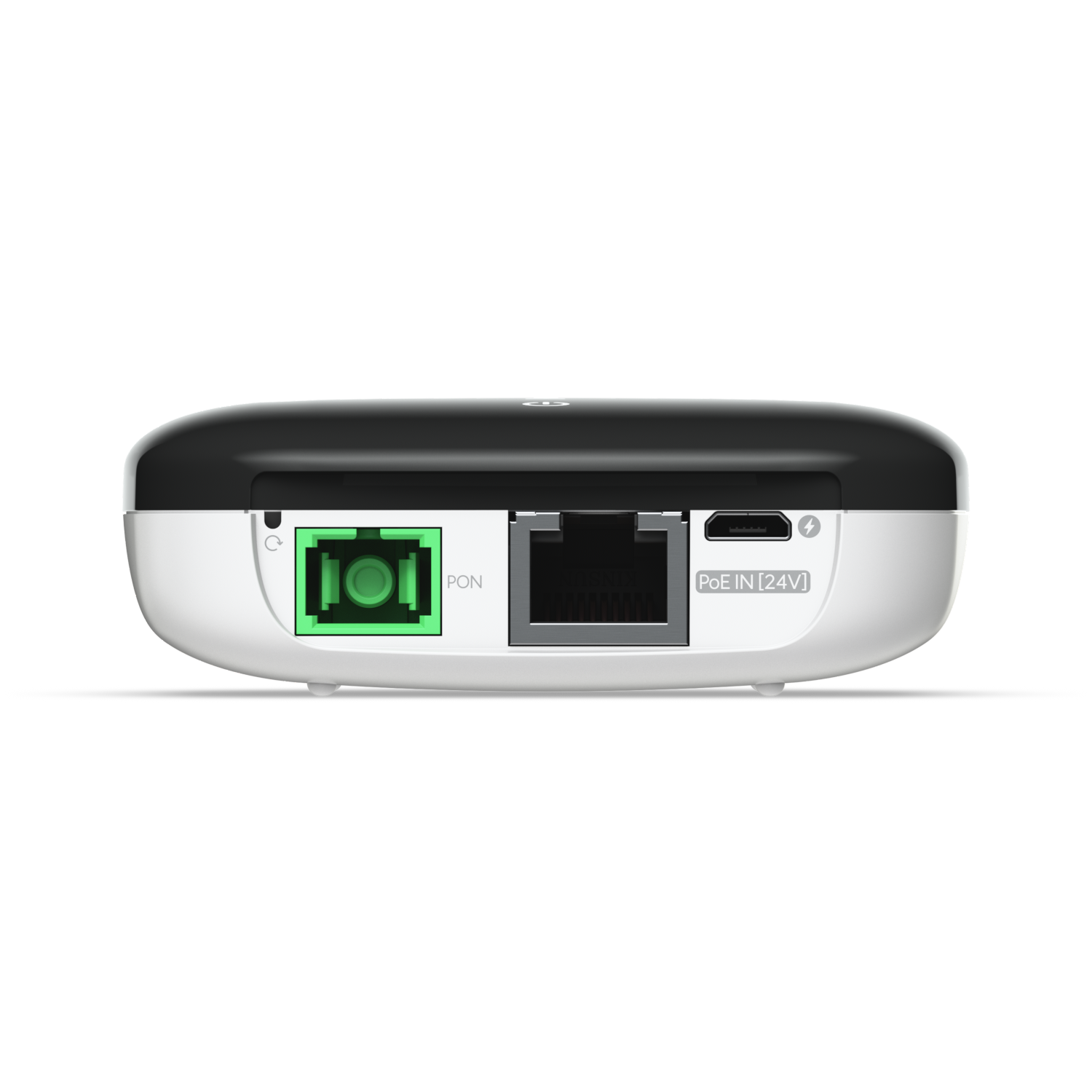

- Networking interface
- (1) SC/APC, ITU-G.984 GPON WAN port
(1) GbE RJ45 LAN ports - Management interface
- Ethernet In-Band
PON - Power method
- Micro-USB: 5V, 1A
24V Passive PoE (Pins +4, 5; -7, 8) - Power supply
- Micro-USB Power Adapter*
*Included only in the single-pack of the UF-LOCO. - Supported voltage range
- 4.7–5.3V
- Max. power consumption
- 3.5W
- Total non-blocking line rateDownstreamUpstream
2.488 Gbps
1.244 Gbps- Normal range of optical moduleTXRX
1.5 to 5 dBm
-8 to -28 dBm- Button
- (1) Factory reset
- Ambient operating temperature
- -10 to 45° C (14 to 113° F)
- Ambient operating humidity
- 10 to 90% noncondensing
- Certifications
- CE, FCC, IC
- NDAA Compliant
- Yes

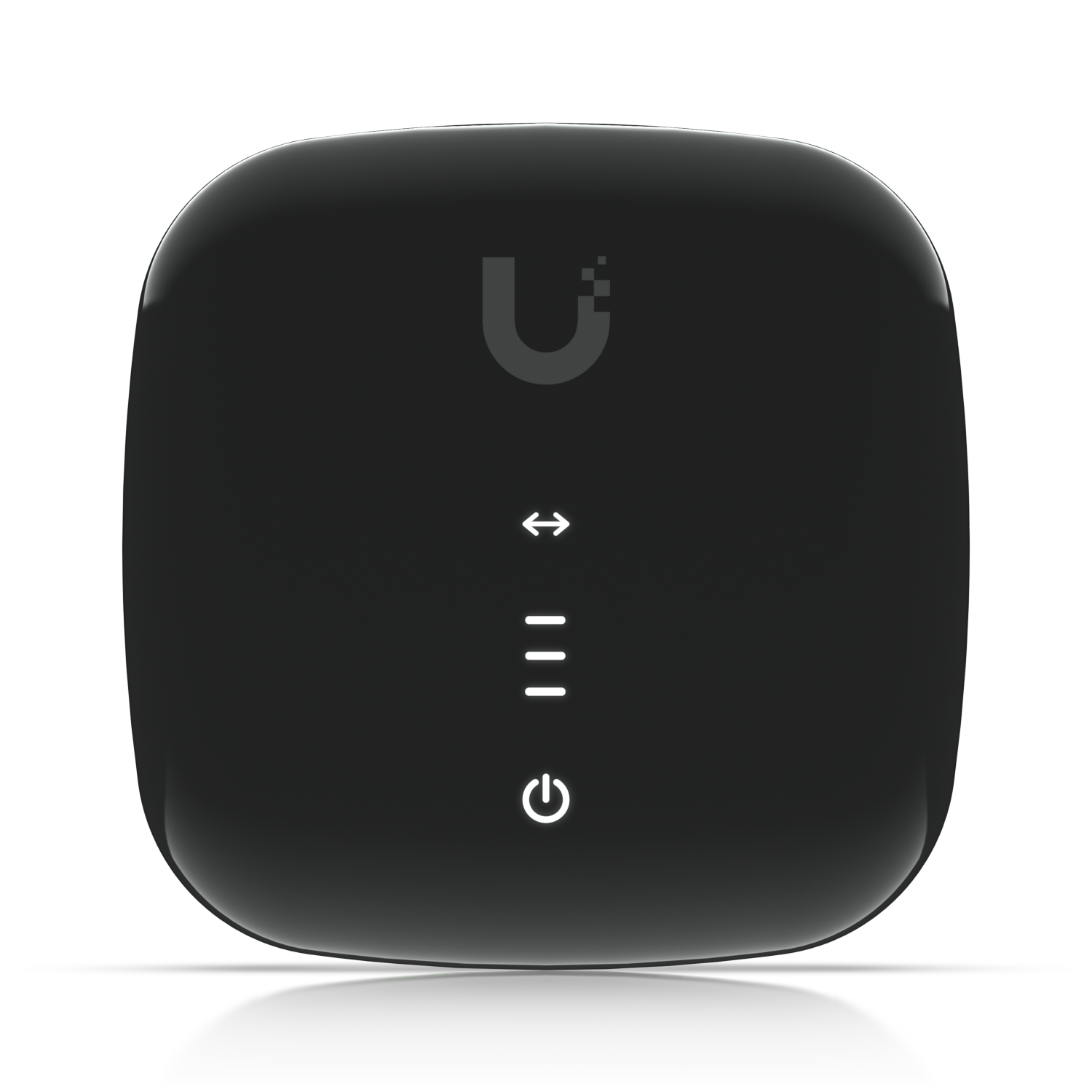

LEDs
- PON status
- (3) signal LEDs
All-OFF: bootup
1x red: signal too low (< -28 db)
1x white: signal low (>= -28 db)
2x white: signal good (>= -25 db)
3x white: signal strong (>= -11 db)
1x red + 2x white: signal too strong (>= -8 db)
3x red: no signal
LEDs alternate between red and a signal strength indicator: No authority - Ethernet
- Steady white: link up
Blinking white: activity
OFF: link down - Power
- White: ON
Yazılım
- Mode
- ONU/ONT layer 2/3 Ethernet switch
- Services
- Web server, telnet, NAT, bridging and routing, firewall features, and application passthrough features
- Utilities
- Dashboard, monitoring, alarms, and logs
- Other
- Remote reset, remote reboot, remote firmware upgrade, VLAN support
- Security
- GEM Port Encryption
- Ubiquiti specific features
- UISP Mobile App
Fiber
- Operating wavelengthTXRX
1310 nm
1490 nm- Line code
- Scrambled NRZ
- Optical interface nominal bit rateDownstreamUpstream
2488.32 Mbit/s
1244.16 Mbit/s- Physical reach
- 20 km
FAQ
- Ubiquiti Fiber Loco nedir, ne işe yarar?
- GPON customer-premises equipment (CPE) that pairs high performance with extremely low power consumption.
- Ubiquiti Fiber Loco kimler için uygundur?
- ISPs and WISPs, Fiber infrastructure projects, Metro Ethernet providers
- Ubiquiti Fiber Loco fiyatı ve stok durumu nedir?
- Proje bazlı teklif için iletişime geçin. Stok: Out of stock
- Ubiquiti Fiber Loco kurulum ve proje desteği var mı?
- UBNT Networks Mağaza üzerinden toplu alım, kurulum danışmanlığı ve teknik destek talep edebilirsiniz.
- Ubiquiti Fiber Loco model kodu (MPN) nedir?
- Resmi model: UF-LOCO. Google Merchant ve teklif süreçlerinde bu kod kullanılır.
