Brand Ubiquiti

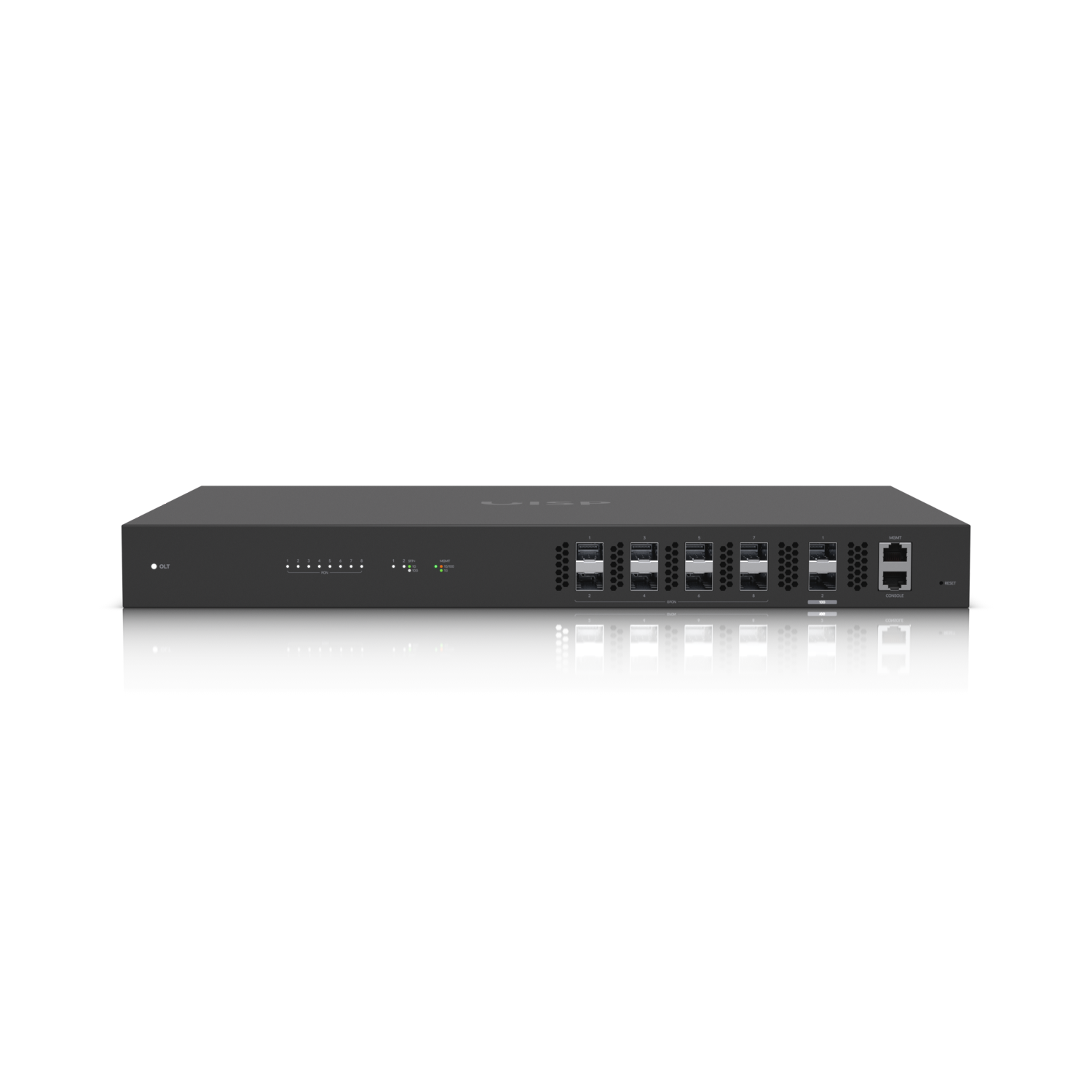

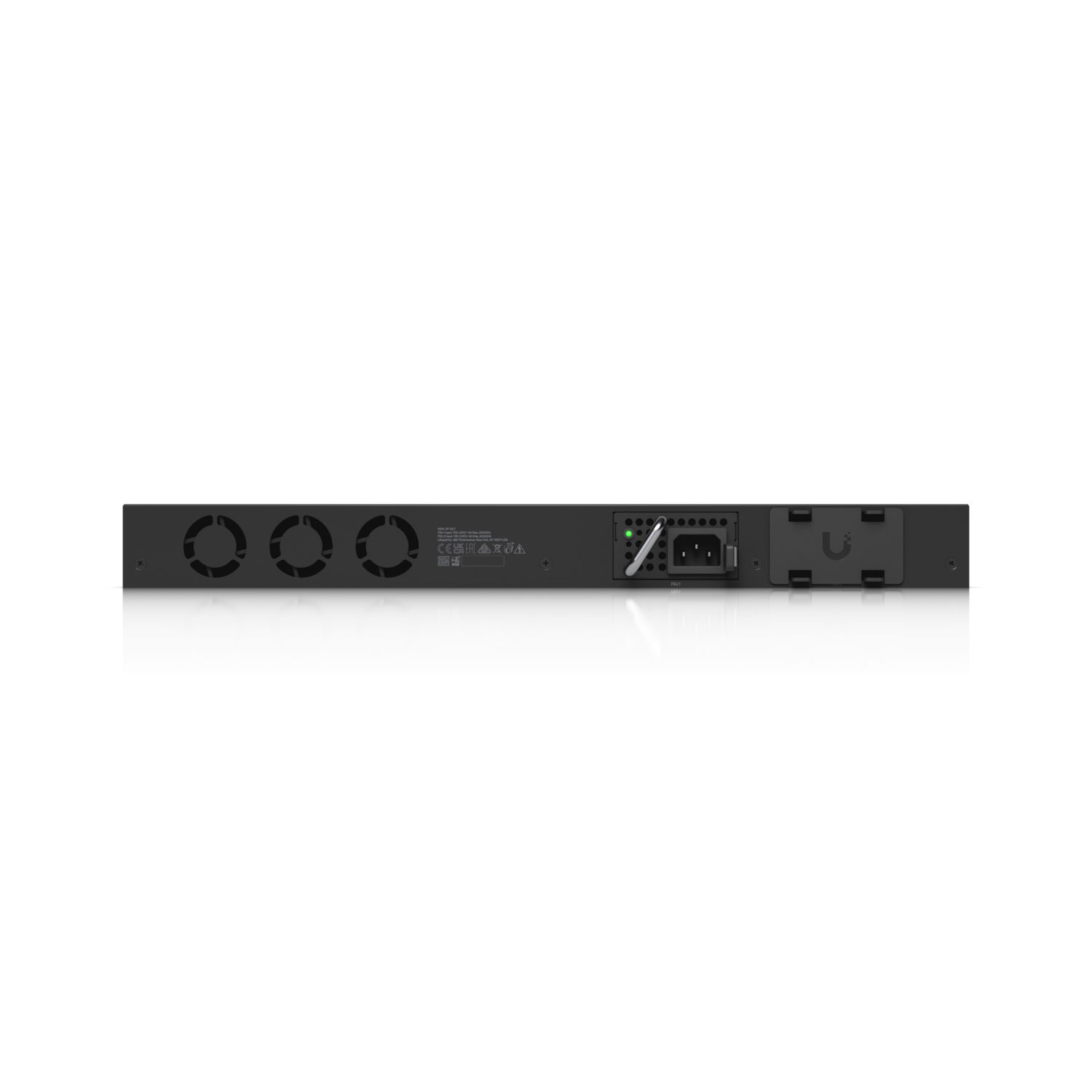

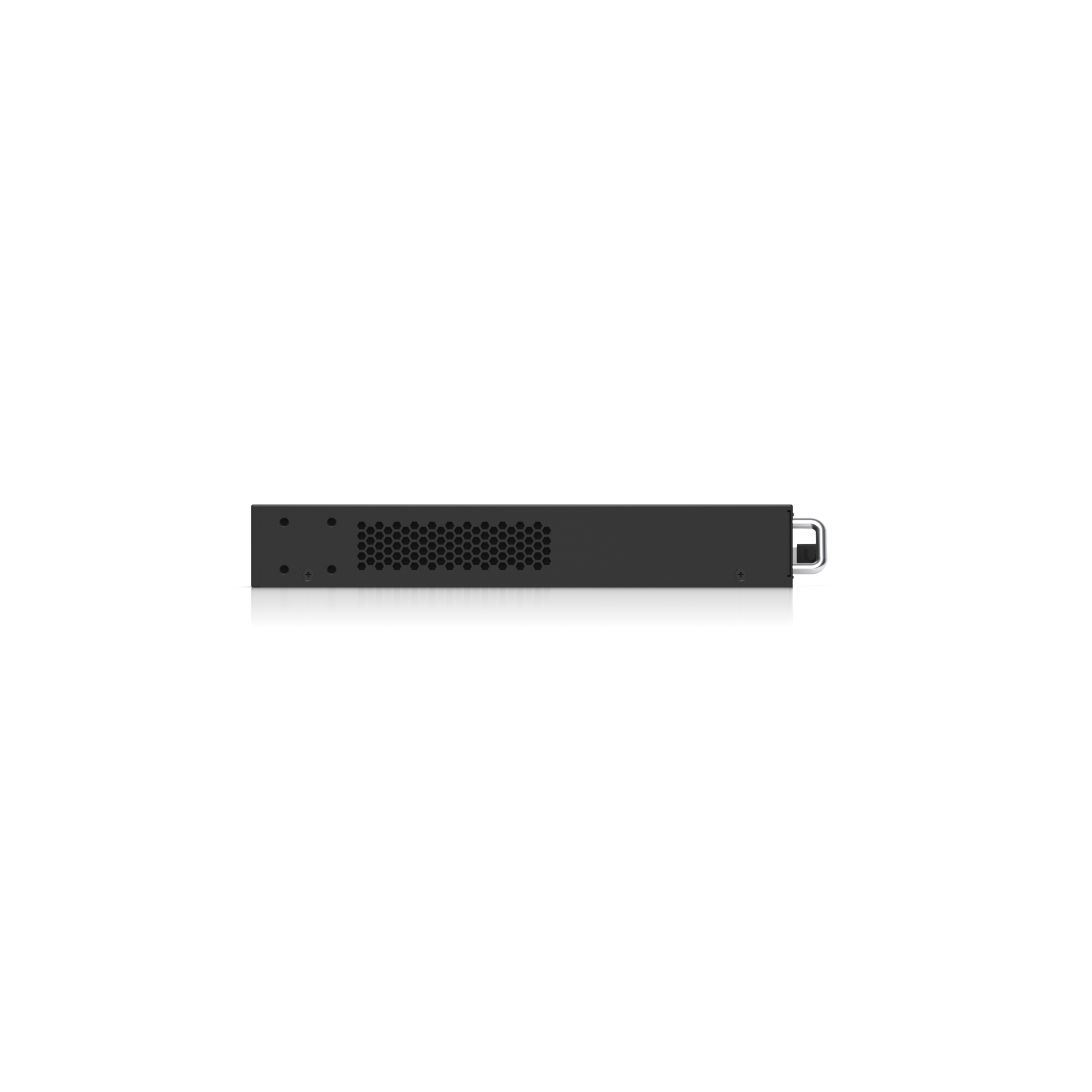

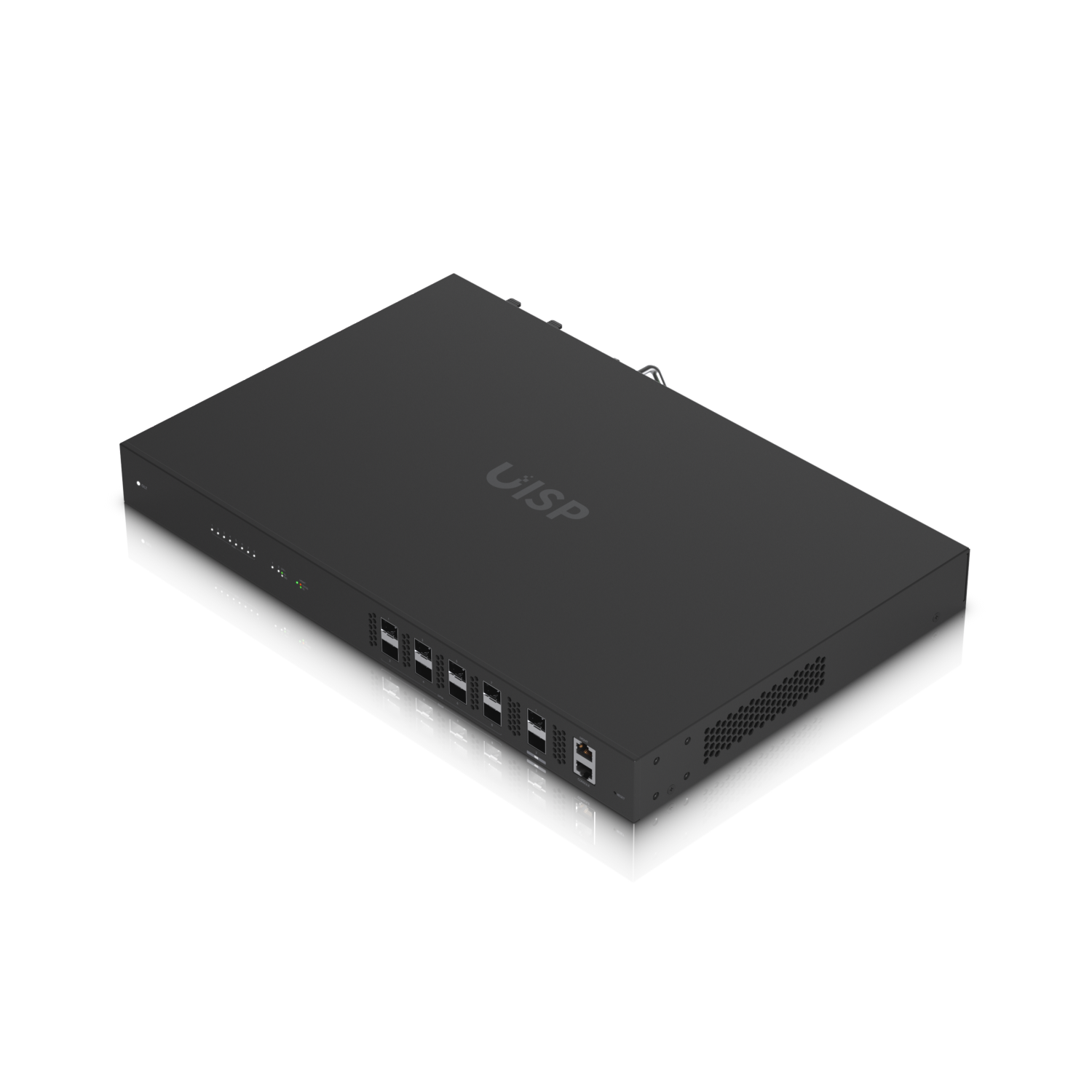

Eight-port GPON optical line terminal (OLT) designed to manage fiber internet service for up to 1,024 clients (128 per port).
Out of stock
Projects & bulk orders
For corporate projects we offer discovery, BOM and installation support for Ubiquiti Fiber OLT. Build your quote list and send it in one go.
My quote list (0) · Compare
Who is it for?
- ISPs and WISPs
- Fiber infrastructure projects
- Metro Ethernet providers
Use cases
- Fiber deployments and refresh projects
- Central management and cloud control (UniFi / UISP)
- Scalable enterprise WiFi and switching
- Technical support and bulk supply
Eight-port GPON optical line terminal (OLT) designed to manage fiber internet service for up to 1,024 clients (128 per port).
Mekanik
- Dimensions
- 442.4 x 285.6 x 43.7 mm (17.4 x 11.2 x 1.7")
- Weight
- Without mounting brackets: 4.4 kg (9.7 lb)
With mount brackets: 4.5 kg (9.9 lb) - Enclosure material
- SGCC steel
Donanım
- Networking interface
- (8) GPON OLT SFP ports
(2) 10 Gbps SFP+ ports - Management interface
- (1) Ethernet Out-of-Band
(1) Ethernet In-Band
(1) RJ45 Serial Console port
Bluetooth - Power method
- Universal input, 100—240V AC, 50/60 Hz
- Power supply
- (2) Hotswap AC/DC PSU
- Supported voltage range
- 100—240V AC
- Max. power consumption
- 40W (Excluding SFP modules)
- Button
- (1) Factory reset
- Ambient operating temperature
- -10 to 45° C (14 to 113° F)
- Ambient operating humidity
- 10 to 90% noncondensing
- Certifications
- CE, FCC, IC
LEDs
- Power
- (1) Blue/white
Blinking blue: reset to default
Steady blue: system is booting
Steady white: service is ready - GPON OLT SFP
- (8) White
Steady/blinking white: link/activity - SFP+
- (2) White/gren
White:10G
Green: 1G
Steady on after link is up; blinking while active - Ethernet
- (1) Green
Green: 1G
Steady on after link is up; blinking while active
Yazılım
- Mode
- OLT GPON Core and Layer 2 Ethernet switch
- VLAN
- 4062 VLANs supported
- Advanced QoS
- Support 8 priority queues per user port and traffic classification
- Concurrent clients
- 1024 ONUs/ONTs registered
- Ubiquiti specific features
- UISP Mobile App
Fiber
- Operating wavelengthTXRX
1490 nm
1310 nm- Line code
- Scrambled NRZ
- Optical interface nominal bit rateDownstreamUpstream
2488.32 Mbit/s
1244.16 Mbit/s- Physical reach
- 20 km
- NDAA Compliant
- Yes
FAQ
- Ubiquiti Fiber OLT nedir, ne işe yarar?
- Eight-port GPON optical line terminal (OLT) designed to manage fiber internet service for up to 1,024 clients (128 per port).
- Ubiquiti Fiber OLT kimler için uygundur?
- ISPs and WISPs, Fiber infrastructure projects, Metro Ethernet providers
- Ubiquiti Fiber OLT fiyatı ve stok durumu nedir?
- Proje bazlı teklif için iletişime geçin. Stok: Out of stock
- Ubiquiti Fiber OLT kurulum ve proje desteği var mı?
- UBNT Networks Mağaza üzerinden toplu alım, kurulum danışmanlığı ve teknik destek talep edebilirsiniz.
- Ubiquiti Fiber OLT model kodu (MPN) nedir?
- Resmi model: UF-OLT. Google Merchant ve teklif süreçlerinde bu kod kullanılır.
