Бренд Ubiquiti
An eight-port optical line terminal that can deliver 10 Gbps uplink/downlink speeds to over 2,000 subscribers.
В наличии
Проекты и опт
Для корпоративных проектов: обследование, спецификация и монтаж для Ubiquiti Fiber OLT XGS. Соберите список и отправьте одним запросом.
Мой список запросов (0) · Сравнить
Для кого подходит?
- ISP и WISP
- Волоконные проекты
- Metro Ethernet
Сценарии использования
- Проекты и модернизация Fiber
- Централизованное управление (UniFi / UISP)
- Масштабируемый WiFi и switching
- Техподдержка и оптовые поставки
An eight-port optical line terminal that can deliver 10 Gbps uplink/downlink speeds to over 2,000 subscribers.
Mekanik
- Dimensions
- 442.4 x 285.6 x 43.7 mm (17.4 x 11.2 x 1.7")
- Weight
- 5.29 kg (11.7 lb)
- Enclosure material
- SGCC steel
Donanım
- Networking interface
- (8) XGS/XG/GPON ports
(4) 1/10/25G SFP28 ports*
*The four SFP28 ports don't support mixed speed at 25 Gbps mode. Once one of the SFP28 ports is configured at 25 Gbps mode, the others will be limited at 25 Gbps too. The SFP28 ports only support mixed speed when all ports are at 1 Gbps or 10 Gbps. - Management interface
- Ethernet out-of-band
Ethernet in-band
RJ45 serial console port
Bluetooth - Memory
- 512 MB DDR3
- Onboard flash storage
- 64 MB NOR + 512 MB NAND
- Power method
- (1) Universal AC input, 100-240V AC, 50/60 Hz
- Power supply

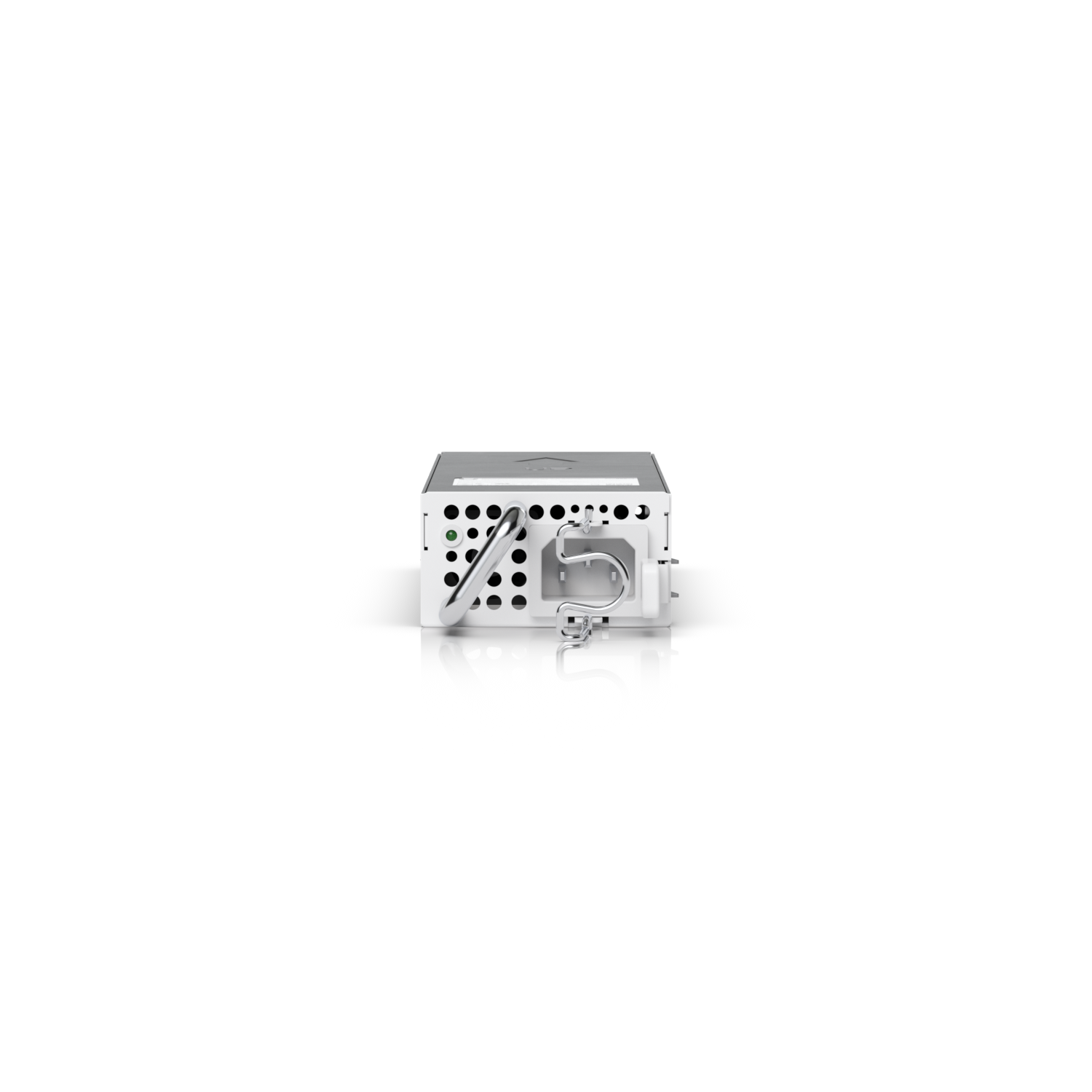

- (2) Hotswap AC/DC PSU
- Supported voltage range
- 100–240V AC
- Max. power consumption
- 70W
- Button
- (1) Factory reset
- Ambient operating temperature
- -10 to 45° C (14 to 113° F)
- Ambient operating humidity
- 10 to 95% non-condensing
- Certifications
- CE, FCC, IC
LEDs
- System
- Slow blinking white: system is booting
Fast blinking white: reset to default
Blinking white/blue: system is upgrading
Slow blinking blue: system is connecting to UISP
Fast blinking blue: locate system
Steady white: system is ready
Steady blue: system is ready and connected to UISP - MGMT port
- (1) White, steady on after link is up
- PON ports
- (8) Steady white: PON link
- SFP28 ports
- (4) White, steady on after link is up
- NDAA Compliant
- Yes
Частые вопросы
- Ubiquiti Fiber OLT XGS nedir, ne işe yarar?
- An eight-port optical line terminal that can deliver 10 Gbps uplink/downlink speeds to over 2,000 subscribers.
- Ubiquiti Fiber OLT XGS kimler için uygundur?
- ISP и WISP, Волоконные проекты, Metro Ethernet
- Ubiquiti Fiber OLT XGS fiyatı ve stok durumu nedir?
- Proje bazlı teklif için iletişime geçin. Stok: В наличии
- Ubiquiti Fiber OLT XGS kurulum ve proje desteği var mı?
- UBNT Networks Mağaza üzerinden toplu alım, kurulum danışmanlığı ve teknik destek talep edebilirsiniz.
- Ubiquiti Fiber OLT XGS model kodu (MPN) nedir?
- Resmi model: UISP-FIBER-OLT-XGS. Google Merchant ve teklif süreçlerinde bu kod kullanılır.
