Бренд Ubiquiti

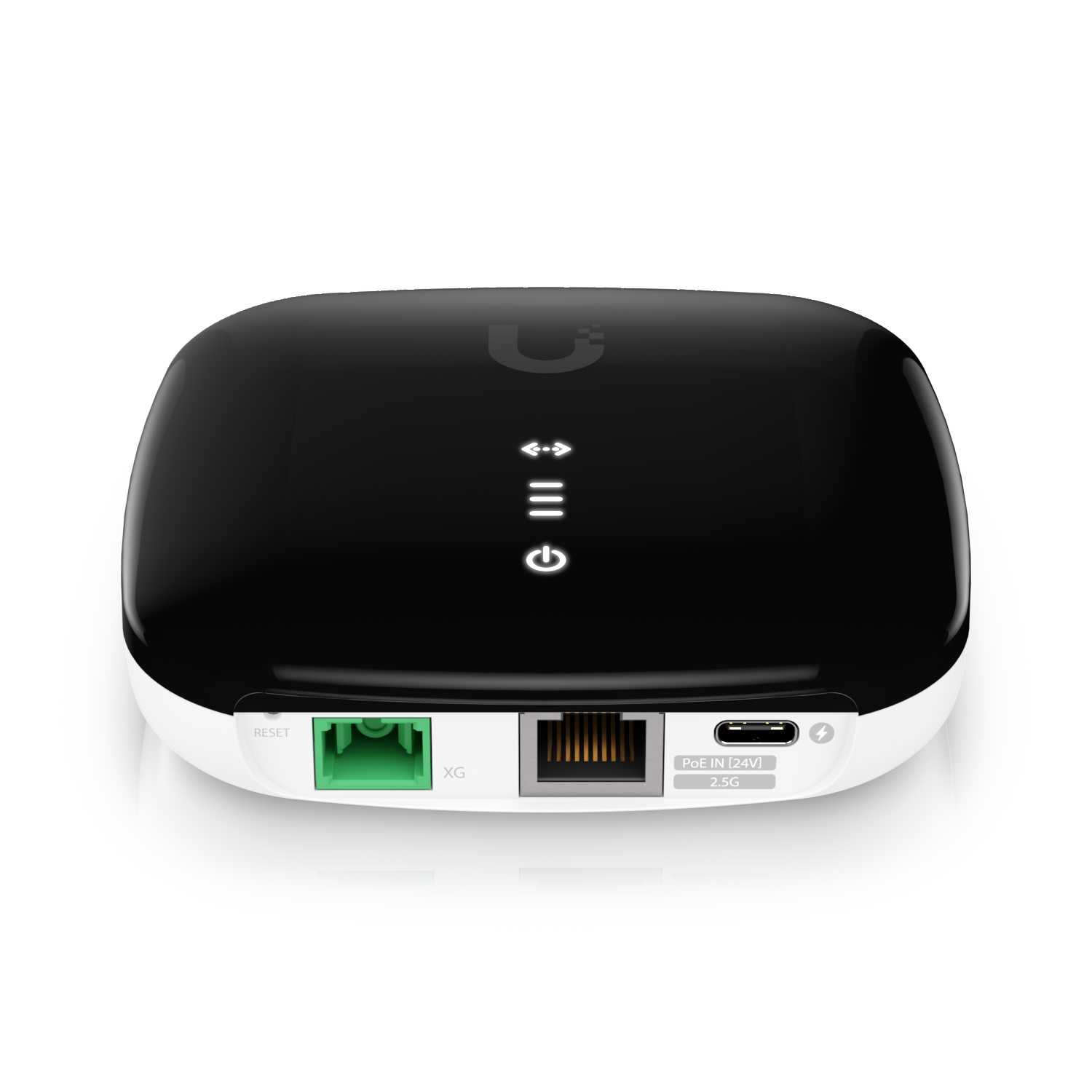

An optical network unit that can deliver 2.5 Gbps uplink/10 Gbps downlink speeds over distances up to 20 km.
В наличии
Проекты и опт
Для корпоративных проектов: обследование, спецификация и монтаж для Ubiquiti Fiber XG. Соберите список и отправьте одним запросом.
Мой список запросов (0) · Сравнить
Для кого подходит?
- ISP и WISP
- Волоконные проекты
- Metro Ethernet
Сценарии использования
- Проекты и модернизация Fiber
- Централизованное управление (UniFi / UISP)
- Масштабируемый WiFi и switching
- Техподдержка и оптовые поставки
An optical network unit that can deliver 2.5 Gbps uplink/10 Gbps downlink speeds over distances up to 20 km.
Mekanik
- Dimensions
- 100 x 100 x 27 mm (3.9 x 3.9 x 1.1")
- Weight
- 220 g (0.49 lb)
- Enclosure material
- UV-stabilized polycarbonate
Donanım
- Networking interface
- (1) SC/APC, ITU-G.987 XGPON WAN port
(1) 100/1,000/2,500 MbE RJ45 LAN ports - Management interface
- Ethernet in-band
PON - PoE interface
- (1) PoE in, 24V DC passive PoE
- Memory
- 256 MB DDR
- Onboard flash storage
- 32 MB NOR
- Max. power consumption
- 6W
- Power method
- USB-C 5V DC, 3A
24V DC passive PoE - Power supply
- 5V DC, 3A power adapter
Passive PoE 2-pair (4, 5+; 7, 8-) - Supported voltage range
- 5V DC adapter
10–30V DC passive PoE - Total non-blocking line rate
- Downstream: 9.95 Gbit/s
Upstream: 2.44 Gbit/s - Normal TX range of optical module
- 2 to 7dBm
- Normal RX range of optical module
- -9 to -27dBm
- Button
- (1) Factory reset
- Ambient operating temperature
- -15 to 45° C (5 to 113° F)
- Ambient operating humidity
- 10 to 95% non-condensing
- Certifications
- CE, FCC, IC
Fiber
- Operating wavelength
- TX: 1,270nm
RX: 1,577nm - Line code
- Scrambled NRZ
- Physical reach
- 20 km
LEDs
- Power
- White: ON
- Ethernet
- Steady white: link up
Blinking white: activity
OFF: link down - PON status
- (3) signal LEDs
All-OFF: bootup
1x orange: signal too low (< -27 dbm)
1x white: signal low (>= -27 dbm)
2x white: signal good (>= -24 dbm)
3x white: signal strong (>= -12 dbm)
1x orange + 2x white: signal too strong (>= -9 dbm)
3x orange: no signal
LEDs alternate between orange + white + orange and a signal strength indicator: no authority - NDAA Compliant
- Yes
Частые вопросы
- Ubiquiti Fiber XG nedir, ne işe yarar?
- An optical network unit that can deliver 2.5 Gbps uplink/10 Gbps downlink speeds over distances up to 20 km.
- Ubiquiti Fiber XG kimler için uygundur?
- ISP и WISP, Волоконные проекты, Metro Ethernet
- Ubiquiti Fiber XG fiyatı ve stok durumu nedir?
- Proje bazlı teklif için iletişime geçin. Stok: В наличии
- Ubiquiti Fiber XG kurulum ve proje desteği var mı?
- UBNT Networks Mağaza üzerinden toplu alım, kurulum danışmanlığı ve teknik destek talep edebilirsiniz.
- Ubiquiti Fiber XG model kodu (MPN) nedir?
- Resmi model: UISP-FIBER-XG. Google Merchant ve teklif süreçlerinde bu kod kullanılır.
