Бренд Ubiquiti

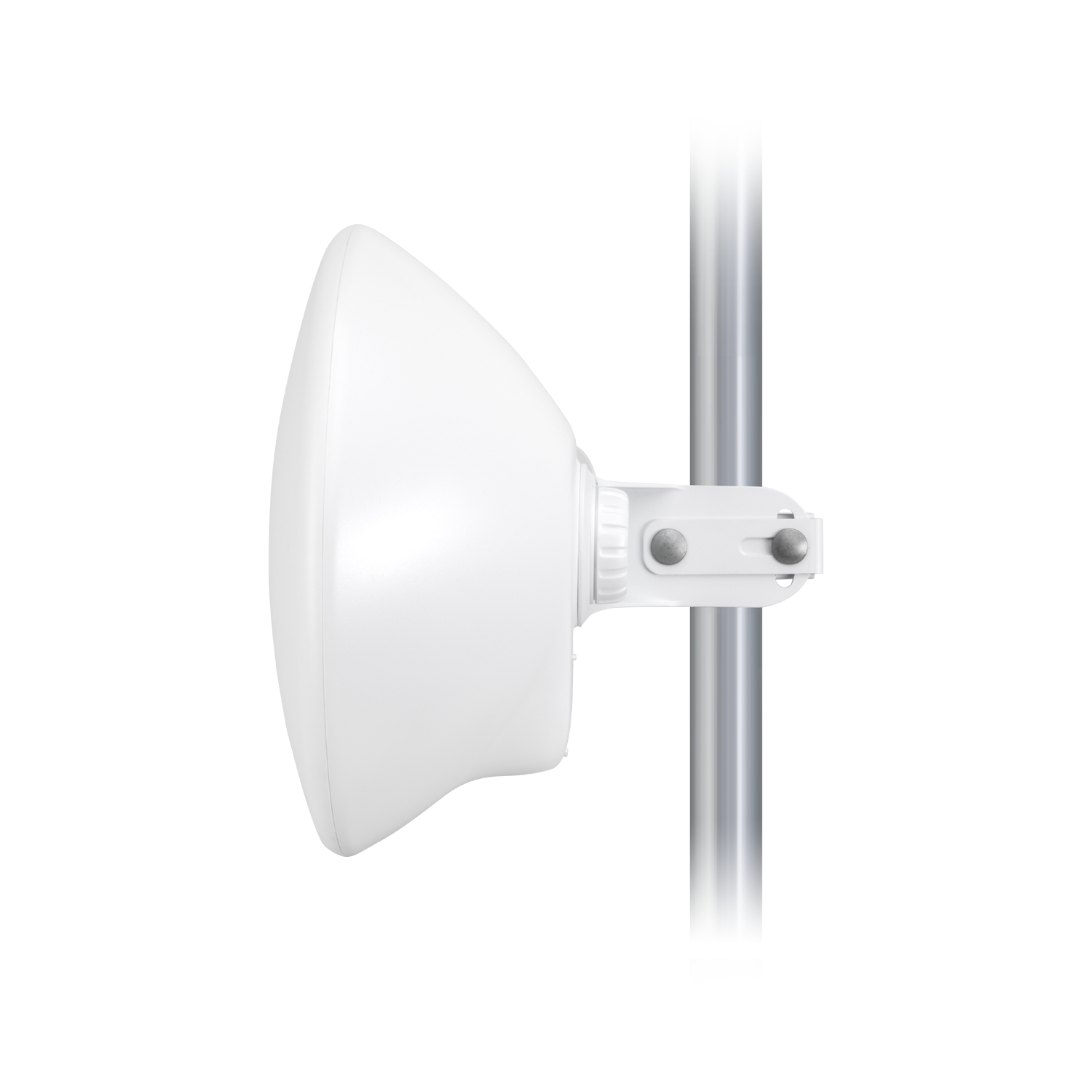

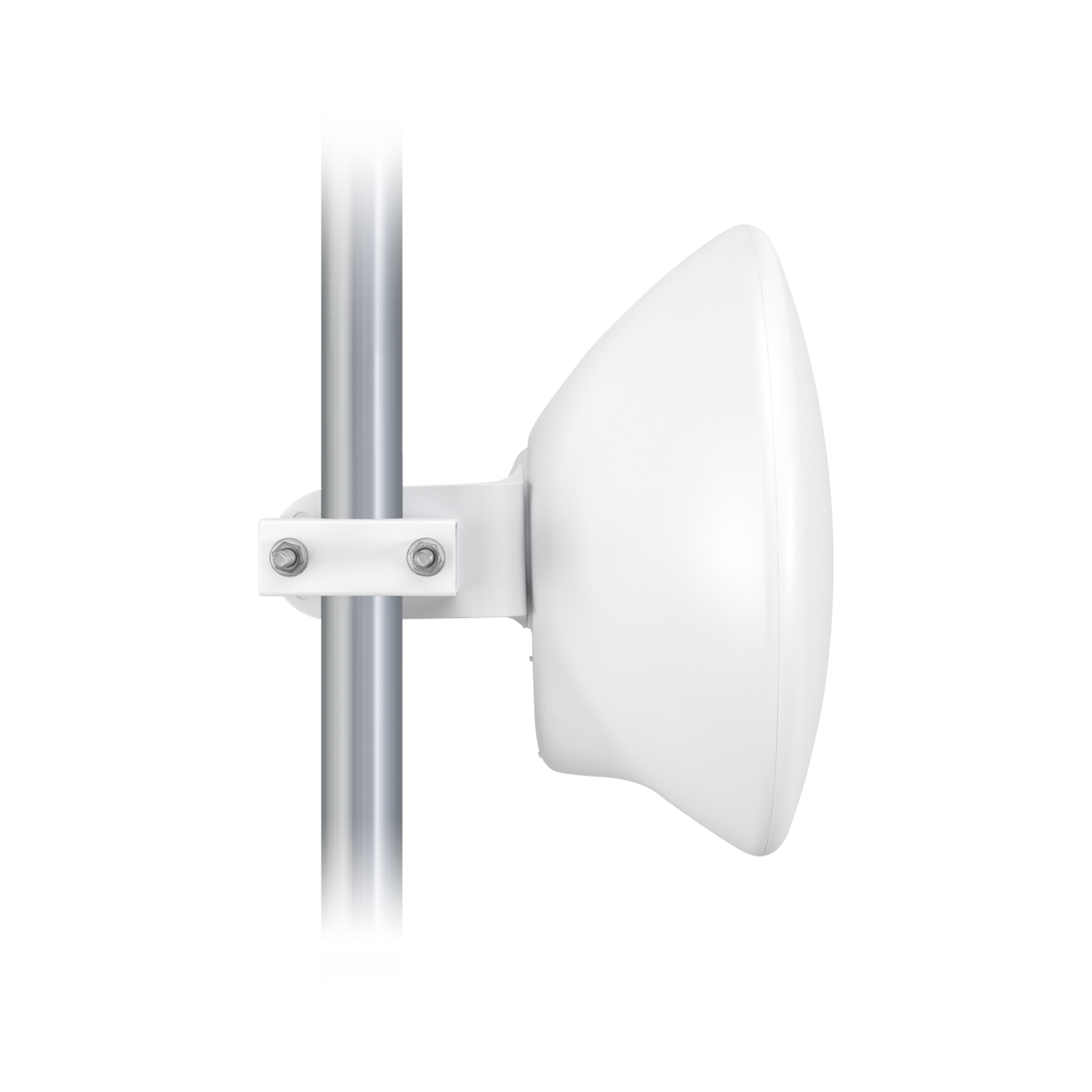

5 GHz PtMP LTU Client with advanced RF performance, functions in a PtMP environment with the LTU-Rocket as the BaseStation.
В наличии
Проекты и опт
Для корпоративных проектов: обследование, спецификация и монтаж для Ubiquiti LTU Pro. Соберите список и отправьте одним запросом.
Мой список запросов (0) · Сравнить
Для кого подходит?
- Последняя миля
- Кампусные сети
- Временные мероприятия
Сценарии использования
- Проекты и модернизация airMAX
- Централизованное управление (UniFi / UISP)
- Масштабируемый WiFi и switching
- Техподдержка и оптовые поставки
5 GHz PtMP LTU Client with advanced RF performance, functions in a PtMP environment with the LTU-Rocket as the BaseStation.
Mekanik
- Dimensions
- 316.5 x 316.5 x 174.3 mm (12.5 x 12.5 x 6.9")
- Weight
- 1.3 kg (2.9 lb)
- Enclosure material
- UV-stabilized polycarbonate
- Mounting
- Pole mount (Kit included)
- Wind loading
- 150 N at 200 km/h (33.72 lbf at 125 mph)
- Wind survivability
- 200 km/h (125 mph)
Donanım
- Networking interface
- (1) GbE RJ45 port
- Power method
- Passive PoE 2-pair (4, 5+; 7, 8-)
- Power supply
- 24V, 0.5A gigabit PoE adapter (Included)
- Supported voltage range
- 22–27V DC
- Max. power consumption
- 9W
- ESD/EMP protection
- Air/contact: ± 24kV
- Ambient operating temperature
- -40 to 60° C (-40 to 140° F)
- Ambient operating humidity
- 10 to 90% noncondensing
- Certifications
- CE, FCC, IC
- NDAA Compliant
- Yes
Yazılım
- Modes
- PtMP CPE, PtP*
*1.5.1 and later 1.5.x series firmware. - Services
- SNMP, SSH, dynamic DNS, webserver, remote log, ping watchdog
- Utilities
- airView®, speed test, alignment, discovery, ping, traceroute, cable test, constellation
- Auto distance adjustment
- Yes
- Auto power adjustment
- Yes
- Network
- Bridge/Router* mode
*Router mode is available in PtMP CPE mode only. - Security
- Yes
- Statical reporting
- Yes
- Management interface
- Bluetooth management for easy setup over UISP App
WEB UI - Minimum software requirements
- Any modern web browser
iOS™ or Android™ based smartphone
Sistem
- Maximum throughput
- 900+ Mbps*
*FW version 2.3.0 and later. - Encryption
- WPA2-PSK (AES)
- Uplink/downlink ratio
- 25/75, 33/67, 50/50
RF
- Operating frequency*US/CAU-NII-1U-NII-2AU-NII-2CU-NII-3EUWorldwide
5150 - 5250 MHz
5250 - 5350 MHz
5470 - 5725 MHz
5725 - 5850 MHz
2400 - 2483.5 MHz
5150 - 5875 MHz
2400 - 2483.5 MHz
4800 - 6200 MHz
*Depends on regulatory region.- Max. conducted TX power
- 22 dBm (per chain)
- Channel bandwidth
- 10/20/30/40/50/60/80/100 MHz*
*FW version 2.3.0 and later. - Antenna gain
- 24 dBi
- Beamwidth
- 14°
- Sidelobe level
- -10 dB
- Front-to-back ratio
- 27 dB
Частые вопросы
- Ubiquiti LTU Pro nedir, ne işe yarar?
- 5 GHz PtMP LTU Client with advanced RF performance, functions in a PtMP environment with the LTU-Rocket as the BaseStation.
- Ubiquiti LTU Pro kimler için uygundur?
- Последняя миля, Кампусные сети, Временные мероприятия
- Ubiquiti LTU Pro fiyatı ve stok durumu nedir?
- Proje bazlı teklif için iletişime geçin. Stok: В наличии
- Ubiquiti LTU Pro kurulum ve proje desteği var mı?
- UBNT Networks Mağaza üzerinden toplu alım, kurulum danışmanlığı ve teknik destek talep edebilirsiniz.
- Ubiquiti LTU Pro model kodu (MPN) nedir?
- Resmi model: LTU-PRO. Google Merchant ve teklif süreçlerinde bu kod kullanılır.
