Бренд Ubiquiti

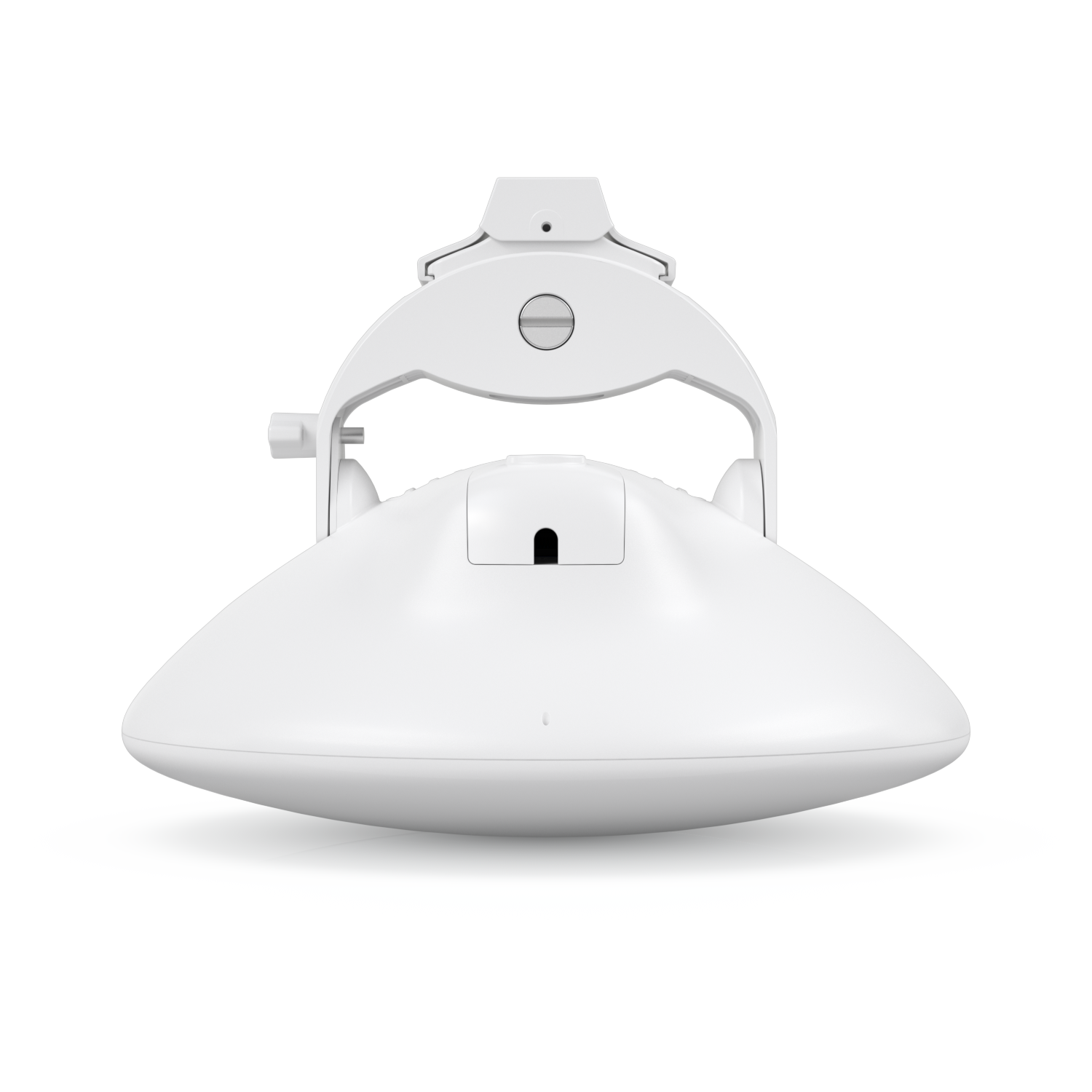

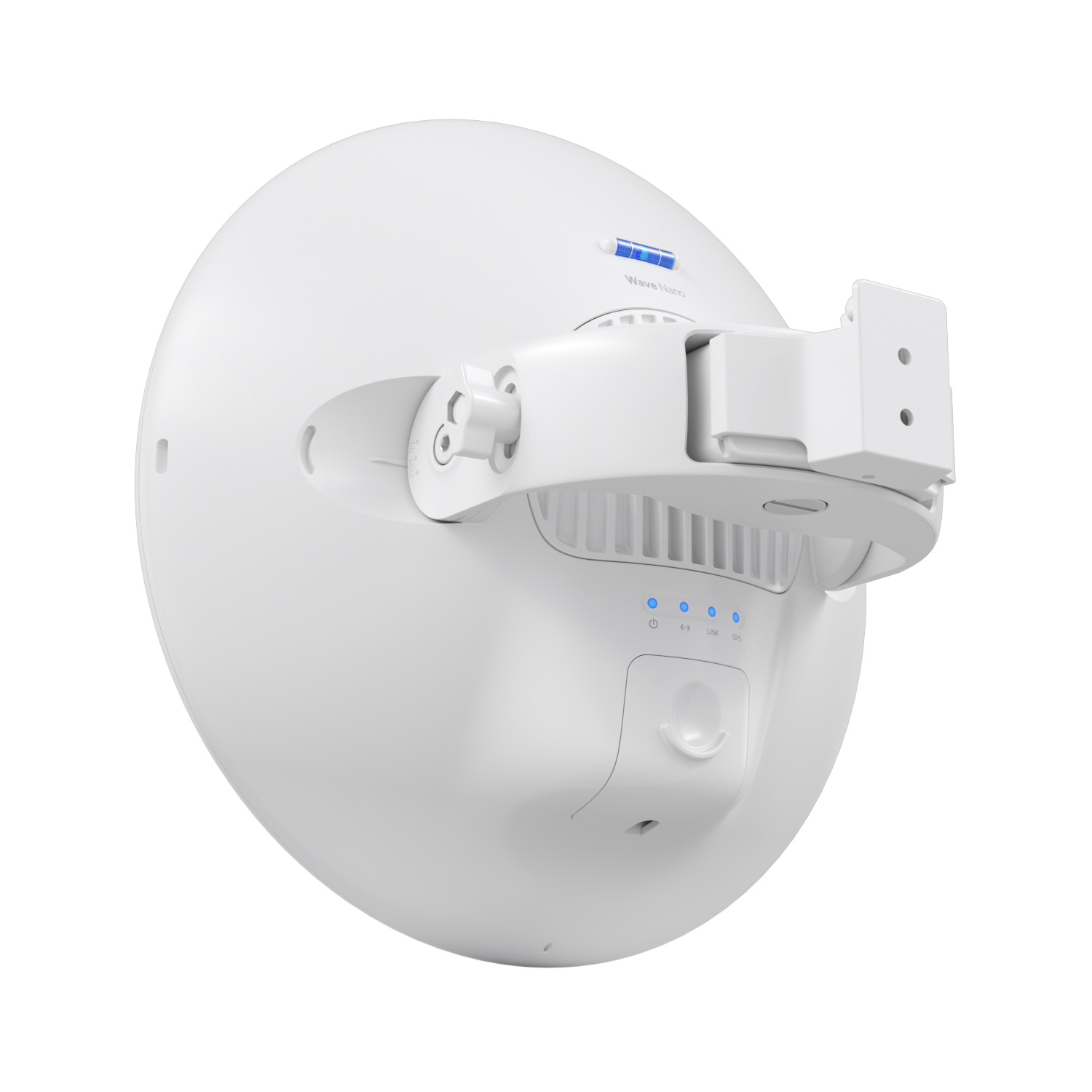

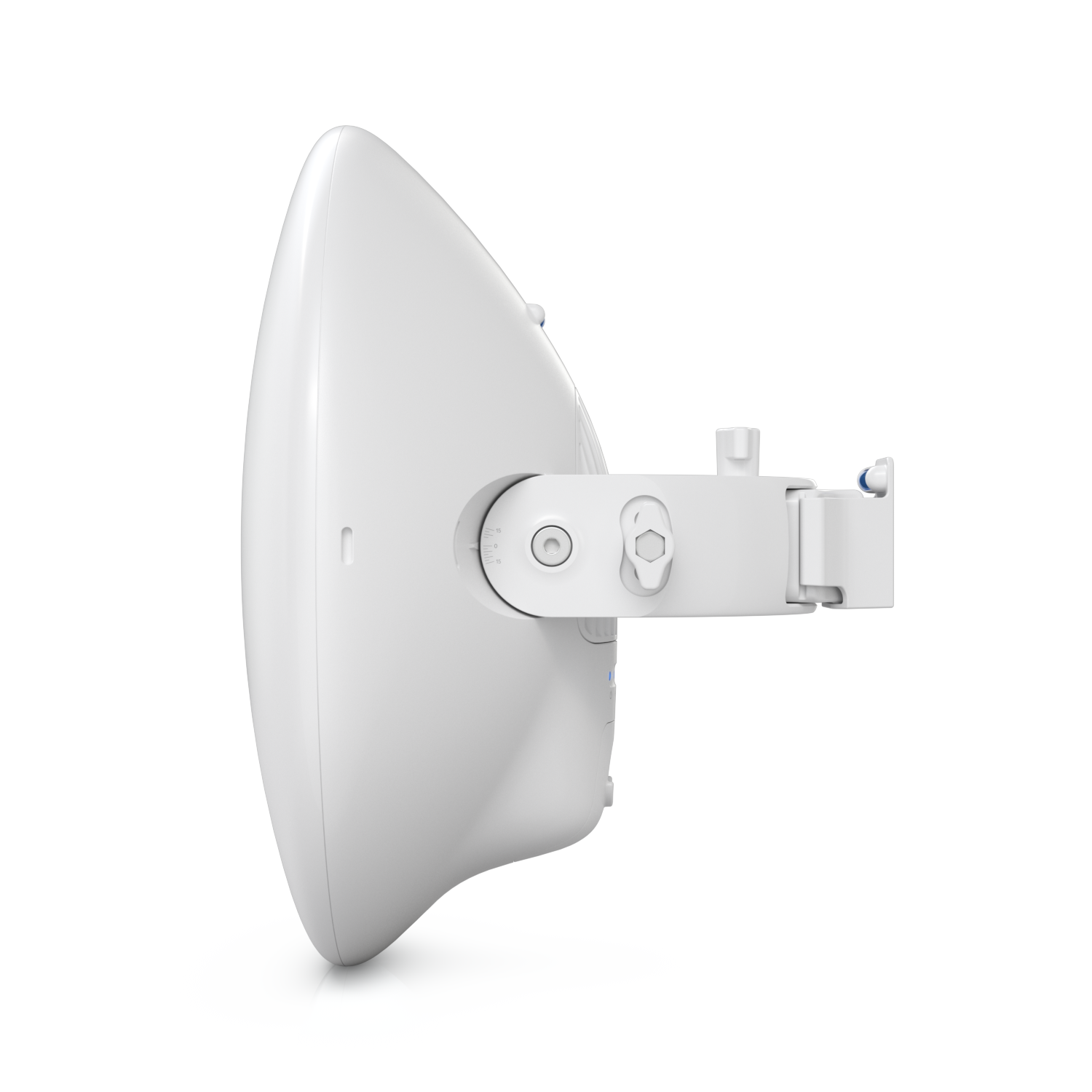

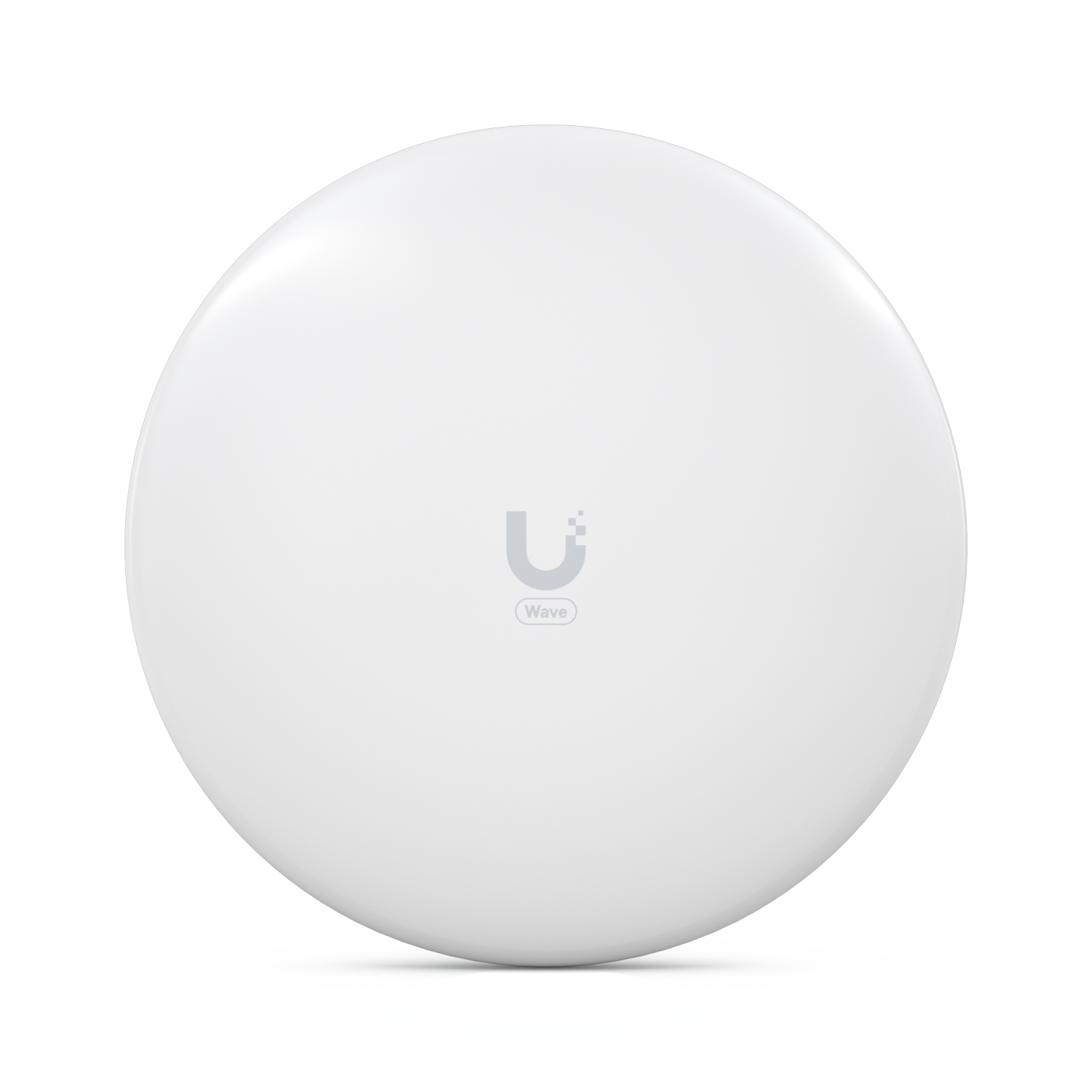

60 GHz PtMP station powered by Wave Technology.
В наличии
Проекты и опт
Для корпоративных проектов: обследование, спецификация и монтаж для Ubiquiti Wave Nano. Соберите список и отправьте одним запросом.
Мой список запросов (0) · Сравнить
Для кого подходит?
- Корпоративные сети
- Системные интеграторы
- IT-отделы
- Оптовые закупки
Сценарии использования
- Проекты и модернизация Wave
- Централизованное управление (UniFi / UISP)
- Масштабируемый WiFi и switching
- Техподдержка и оптовые поставки
60 GHz PtMP station powered by Wave Technology.
Mekanik
- Dimensions
- ⌀256.5 x 113.5 mm (⌀10.1 x 4.5")
- Weight
- Without mount: 932 g (2.1 lb) With mount: 1.2 kg (2.6 lb)
- Enclosure Material
- Aluminum alloy, UV stabilized polycarbonate
- Mount Material
- Aluminum alloy, UV stabilized polycarbonate
- Mounting
- Pole Mount
- Pole Mount Diameter
- 25 to 63.5 mm (1 to 2.5") (on pipe outer diameter)
- Wind Loading
- 127 N at 200 km/h (28.6 lbf at 125 mph)
- Weatherproofing
- IPX6
Donanım
- Processor
- Dual-core ARM® Cortex®-A53 at 1 GHz
- Memory
- 512 MB
- Networking Interface
- (1) GbE RJ45 port
- Max. Power Consumption
- 20W
- Power Method
- Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-) Passive PoE 2-pairs (4, 5+; 7, 8-), for 44–54V DC only
- Supported Voltage Range
- 44–54V DC 22–27V DC
- Power Supply
- 48V DC, 0.65A gigabit PoE adapter (Included)
- Buttons
- (1) Factory reset
- Power
- Flashing white: bootup in progress White: not connected to UISP application Blue: connected to UISP application Flashing blue: locate in progress Blue/white: firmware upgrade in progress
- Ethernet
- Flashing blue: Ethernet traffic detected
- GPS
- Blue: receiving at least (4) GPS satellite signal
- Link
- White: 5 GHz link Blue: 60 GHz link
- Ambient Operating Temperature
- -40 to 60° C (-40 to 140° F)
- Ambient Operating Humidity
- 5 to 95% noncondensing
- Certifications
- FCC, IC, CE
Yazılım
- Operating Modes
- PtP PtMP Station (PtP supported with FW version 3.2.0 and later.)
- Network
- Bridge/Router mode (Router is available in PtMP station mode only.)
- UISP
- Version 1.4.5 and later
System
- Total Throughput
- 2 Gbps
- Max. Range
- 5+ km (3.1 mi)
- Encryption
- WPA2-PSK (AES)
Radio Frequency
- Worldwide
- 57–71 GHz (Depends on regulatory region.)
- Channel Bandwidth
- 2160, 1080, 540 MHz (540 MHz is supported in FW 3.3.0 and later.)
- Operating Channels
- 58320, 59400, 60480, 61560, 62640, 63720, 64800, 65880, 66960, 68040, 69120, 70200, 70560 MHz (Operating Channels depends on regulatory region. 70560 MHz is supported in FW 3.3.0 and later.)
- Modulation
- 16QAM, QPSK
- Antenna Gain
- 41 dBi
- Polarization
- Vertically-Linear
- Beamwidth
- Azimuth: 3 dB 1.4° Elevation: 3 dB 1.4°
Radio Frequency (Back-Up)
- WiFi Standard
- 802.11ax (WiFi 6)
- US/CA
- U-NII-1 5150 - 5250 MHz U-NII-2A 5250 - 5350 MHz U-NII-2C 5470 - 5725 MHz U-NII-3 5725 - 5850 MHz
- Worldwide
- 5150 - 5875 MHz (Depends on regulatory region.)
- Channel Bandwidth
- 20, 40, 80 MHz
- Modulation
- BPSK (1⁄2), QPSK (1⁄2), QPSK (3⁄4), 16QAM (1⁄2), 16QAM (3⁄4), 64QAM (2⁄3), 64QAM (3⁄4), 64QAM (5⁄6), 256QAM (3⁄4), 256QAM (5⁄6), 1024QAM (3⁄4), 1024QAM (5⁄6)
- Antenna Gain
- 19 dBi
- Polarization
- Dual-Linear
- Beamwidth
- Azimuth: 3 dB 14° Elevation: 3 dB 14°
- Cross-Pol Isolation
- 20 dB
Частые вопросы
- Ubiquiti Wave Nano nedir, ne işe yarar?
- 60 GHz PtMP station powered by Wave Technology.
- Ubiquiti Wave Nano kimler için uygundur?
- Корпоративные сети, Системные интеграторы, IT-отделы, Оптовые закупки
- Ubiquiti Wave Nano fiyatı ve stok durumu nedir?
- Proje bazlı teklif için iletişime geçin. Stok: В наличии
- Ubiquiti Wave Nano kurulum ve proje desteği var mı?
- UBNT Networks Mağaza üzerinden toplu alım, kurulum danışmanlığı ve teknik destek talep edebilirsiniz.
- Ubiquiti Wave Nano model kodu (MPN) nedir?
- Resmi model: Wave-Nano. Google Merchant ve teklif süreçlerinde bu kod kullanılır.
