Marka Ubiquiti

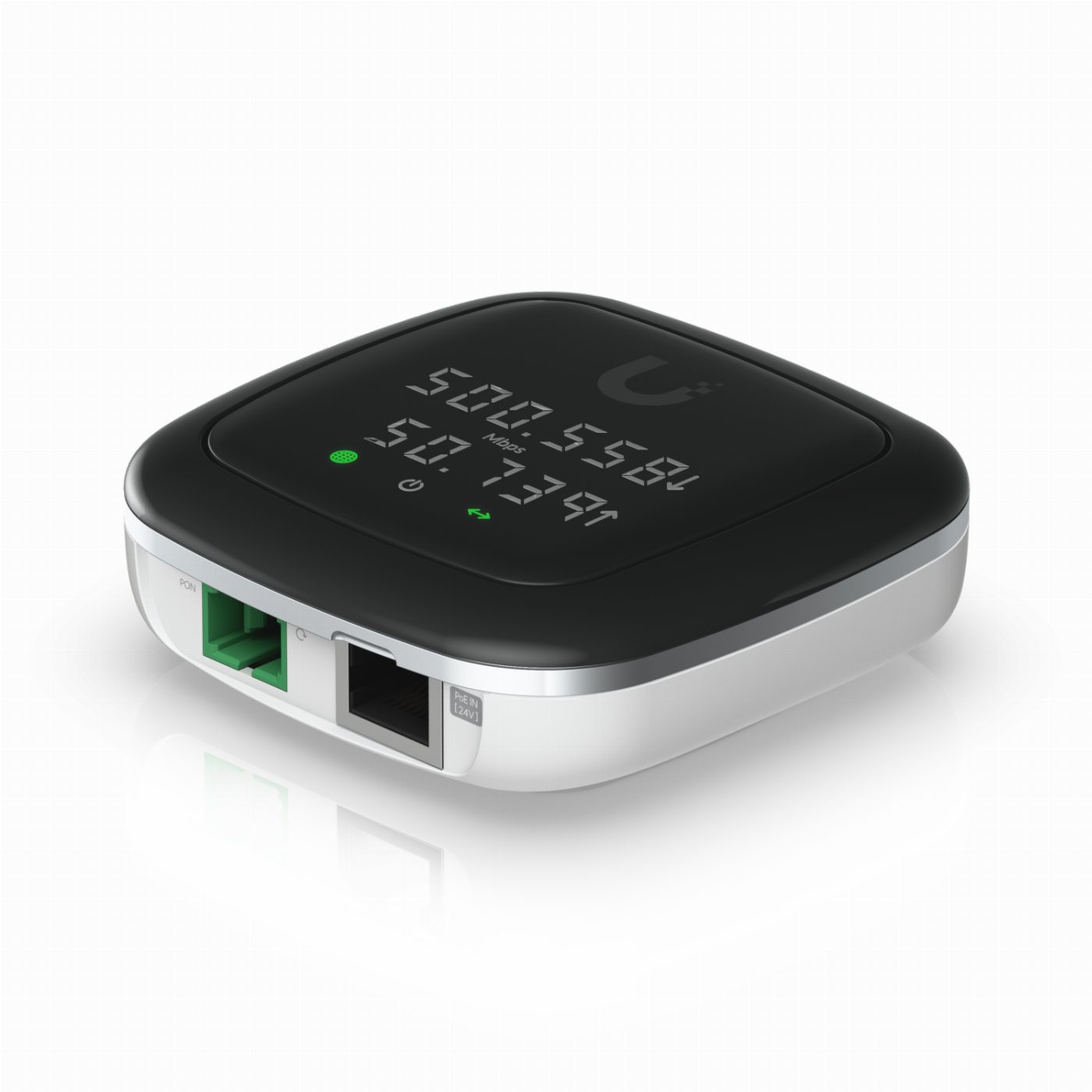

GPON customer-premises equipment (CPE) with an LED display for convenient device monitoring.
Tükendi
Proje & toplu alım
Kurumsal projelerde Ubiquiti Fiber Nano için keşif, BOM ve kurulum desteği sunuyoruz. Sepet yerine teklif listenizi oluşturup tek seferde gönderin.
Teklif listem (0 ürün) · Karşılaştır
Kimler için uygun?
- ISP ve WISP operatörleri
- Fiber altyapı projeleri
- Metro ethernet sağlayıcılar
Kullanım alanları
- Fiber kurulumları ve yenileme projeleri
- Merkezi yönetim ve bulut kontrol (UniFi / UISP)
- Ölçeklenebilir kurumsal WiFi ve switching
- Teknik destek ve toplu alım tedariki
GPON customer-premises equipment (CPE) with an LED display for convenient device monitoring.
Mekanik
- Boyutlar
- 77 x 77 x 28 mm (3 x 3 x 1.1")
- Ağırlık
- 110 g (3.9 oz)
- Enclosure material
- UV-stabilized polycarbonate (PC110U)
Donanım
- Networking interface
- (1) SC/APC, ITU-G.984 GPON WAN port
(1) GbE RJ45 LAN ports - Management interface
- Ethernet In-Band
PON - Power method
- 24V Passive PoE (Pins 4, 5+; 7, 8-), 0.3A
- Power supply
- UniFi PoE Switch
- Supported voltage range
- 20–28V DC
- Max. power consumption
- 7W
- Total non-blocking line rateDownstreamUpstream
2.488 Gbps
1.244 Gbps- Normal range of optical moduleTXRX
1.5 to 5 dBm
-8 to -28 dBm- Button
- (1) Factory reset
(1) Information - Ambient operating temperature
- -40 to 55° C (-40 to 158° F)
- Ambient operating humidity
- 5 to 95% noncondensing
- Sertifikalar
- FCC, IC, CE
- NDAA Compliant
- Yes
LEDs
- PON status
- (1) Steady white: powered up
(1) Blinking white: activity
(1) OFF: link down
(1) Red: no optical receive power, loss of signal - Ethernet
- Steady white: link up
Blinking white: activity
OFF: link down - Güç
- White: ON
Yazılım
- Mode
- ONU/ONT layer 2/3 Ethernet switch
- Services
- Web server, telnet, NAT, bridging and routing, firewall features, and application passthrough features
- Utilities
- Dashboard, monitoring, alarms, and logs
- Other
- Remote reset, remote reboot, remote firmware upgrade, VLAN support
- Security
- GEM Port Encryption
- Ubiquiti specific features
- UISP Mobile App
Fiber
- Operating wavelengthTXRX
1310 nm
1490 nm- Line code
- Scrambled NRZ
- Optical interface nominal bit rateDownstreamUpstream
2488.32 Mbit/s
1244.16 Mbit/s- Physical reach
- 20 km
Sık sorulan sorular
- Ubiquiti Fiber Nano nedir, ne işe yarar?
- GPON customer-premises equipment (CPE) with an LED display for convenient device monitoring.
- Ubiquiti Fiber Nano kimler için uygundur?
- ISP ve WISP operatörleri, Fiber altyapı projeleri, Metro ethernet sağlayıcılar
- Ubiquiti Fiber Nano fiyatı ve stok durumu nedir?
- Proje bazlı teklif için iletişime geçin. Stok: Tükendi
- Ubiquiti Fiber Nano kurulum ve proje desteği var mı?
- UBNT Networks Mağaza üzerinden toplu alım, kurulum danışmanlığı ve teknik destek talep edebilirsiniz.
- Ubiquiti Fiber Nano model kodu (MPN) nedir?
- Resmi model: UF-Nano. Google Merchant ve teklif süreçlerinde bu kod kullanılır.
