Brand Ubiquiti

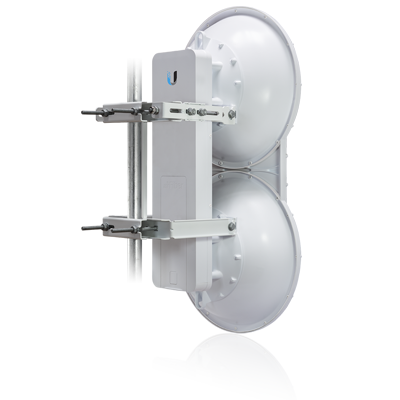

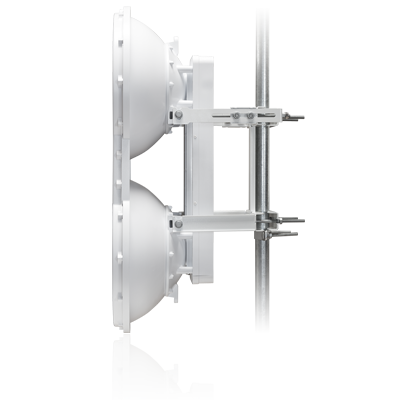

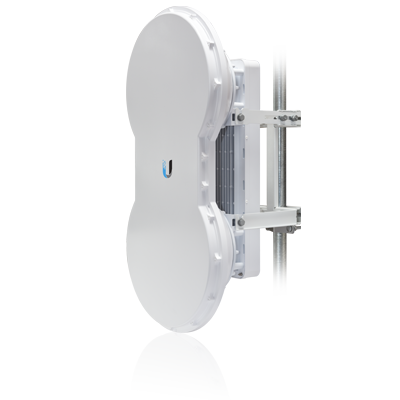

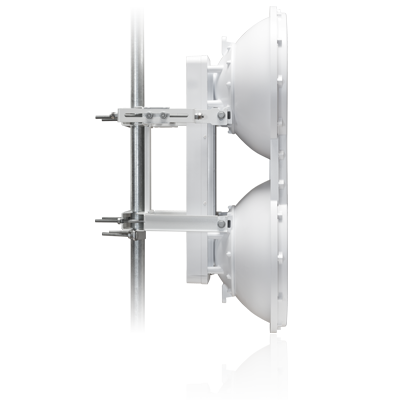

Compact, wireless point-to-point high-band bridge with a 1.2+ Gbps throughput rate.
In stock
Projects & bulk orders
For corporate projects we offer discovery, BOM and installation support for Ubiquiti airFiber 5 High-Band. Build your quote list and send it in one go.
My quote list (0) · Compare
Who is it for?
- PtP backhaul links
- Rural and remote connectivity
- High-capacity wireless backbone
Use cases
- airFiber deployments and refresh projects
- Central management and cloud control (UniFi / UISP)
- Scalable enterprise WiFi and switching
- Technical support and bulk supply
Compact, wireless point-to-point high-band bridge with a 1.2+ Gbps throughput rate.
Mekanik
- Dimensions
- 938.4 x 468.4 x 281.4 mm (36.9 x 18.4 x 11.1")
- Weight
- 16 kg (35.3 lb)
- Mounting
- Pole mount kit (Included)
- Wind loading
- 863 N @ 200 km/h (194 lbf @ 125 mph)
- Wind survivability
- 200 km/h (125 mph)
Donanım
- Networking interface
- (1) GbE RJ45 port
(1) 10/100 MbE RJ45 port - Auxiliary port
- (1) RJ-12, alignment tone port
- Power method
- Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-)
- Power supply
- 50V, 1.2A gigabit PoE adapter (Included)
- Supported voltage range
- 42–58V DC
- Max. power consumption
- 40W
- Ambient operating temperature
- -40 to 55°C (-40 to 131° F)
- Certifications
- CE, FCC, IC
- NDAA Compliant
- Yes
Sistem
- Max. throughput
- 1.2+ Gbps
- Max. range*
- 100+ km
*Dependent on regulatory region. - Packets per second
- 1+ million
- Encryption
- 128-Bit AES
- Uplink/downlink ratio
- Programmable in Half Duplex mode
- Radio frame synchronization
- GPS
RF
- Operating frequency
- 5725 - 5850 MHz (FCC 15.247, IC RSS-210)
5725 - 5875 MHz (ETSI EN 302 502)
5725 - 6200 MHz (Other regions) - GPS
- GPS clock synchronization
- EIRP
- ~50 dBm
*Dependent on regulatory region and frequency band. - Frequency accuracy
- ±2.5 ppm without GPS synchronization
±0.2 ppm with GPS synchronization - Channel bandwidth
- 10/20/30/40/50 MHz
- Modulation
- 1024QAM MIMO
256QAM MIMO
64QAM MIMO
16QAM MIMO
QPSK MIMO
½ Rate QPSK xRT
¼ Rate QPSK xRT - GainTXRX
23 dBi
23 dBi- Beamwidth
- 6°
- Front-to-back ratio
- 70 dB
- Polarization
- Dual-slant
- Cross-polarity isolation
- > 28 dB
LEDs
- System
- (12) Status LEDs: Data port pink/activity
Data port speed
Management port link/activity
Management port speed
GPS synchronization
Master/slave
Link status
Modulation mode 0.25x to 4x, 6x, 8x, 10x (unlabelled), overload
Remote and local displays (Calibrated signal strength)
FAQ
- Ubiquiti airFiber 5 High-Band nedir, ne işe yarar?
- Compact, wireless point-to-point high-band bridge with a 1.2+ Gbps throughput rate.
- Ubiquiti airFiber 5 High-Band kimler için uygundur?
- PtP backhaul links, Rural and remote connectivity, High-capacity wireless backbone
- Ubiquiti airFiber 5 High-Band fiyatı ve stok durumu nedir?
- Proje bazlı teklif için iletişime geçin. Stok: In stock
- Ubiquiti airFiber 5 High-Band kurulum ve proje desteği var mı?
- UBNT Networks Mağaza üzerinden toplu alım, kurulum danışmanlığı ve teknik destek talep edebilirsiniz.
- Ubiquiti airFiber 5 High-Band model kodu (MPN) nedir?
- Resmi model: AF-5U. Google Merchant ve teklif süreçlerinde bu kod kullanılır.
