العلامة Ubiquiti
Modular airFiber radio system built for the 11 GHz licensed frequency market that breaks free from the 5 GHz band.
المشاريع والشراء بالجملة
لمشاريع الشركات: استكشاف وقائمة مواد ودعم تركيب لـ Ubiquiti airFiber 11 High-Band Backhaul Radio with Dish Antenna. أنشئ قائمة العروض وأرسلها دفعة واحدة.
قائمة عروض الأسعار (0) · مقارنة
لمن يناسب؟
- مشاريع شبكات الشركات
- مكاملون
- فرق IT
- شراء بالجملة
حالات الاستخدام
- مشاريع Antenna والتحديث
- إدارة مركزية (UniFi / UISP)
- WiFi و switching قابل للتوسع
- دعم فني وتوريد بالجملة
Modular airFiber radio system built for the 11 GHz licensed frequency market that breaks free from the 5 GHz band.

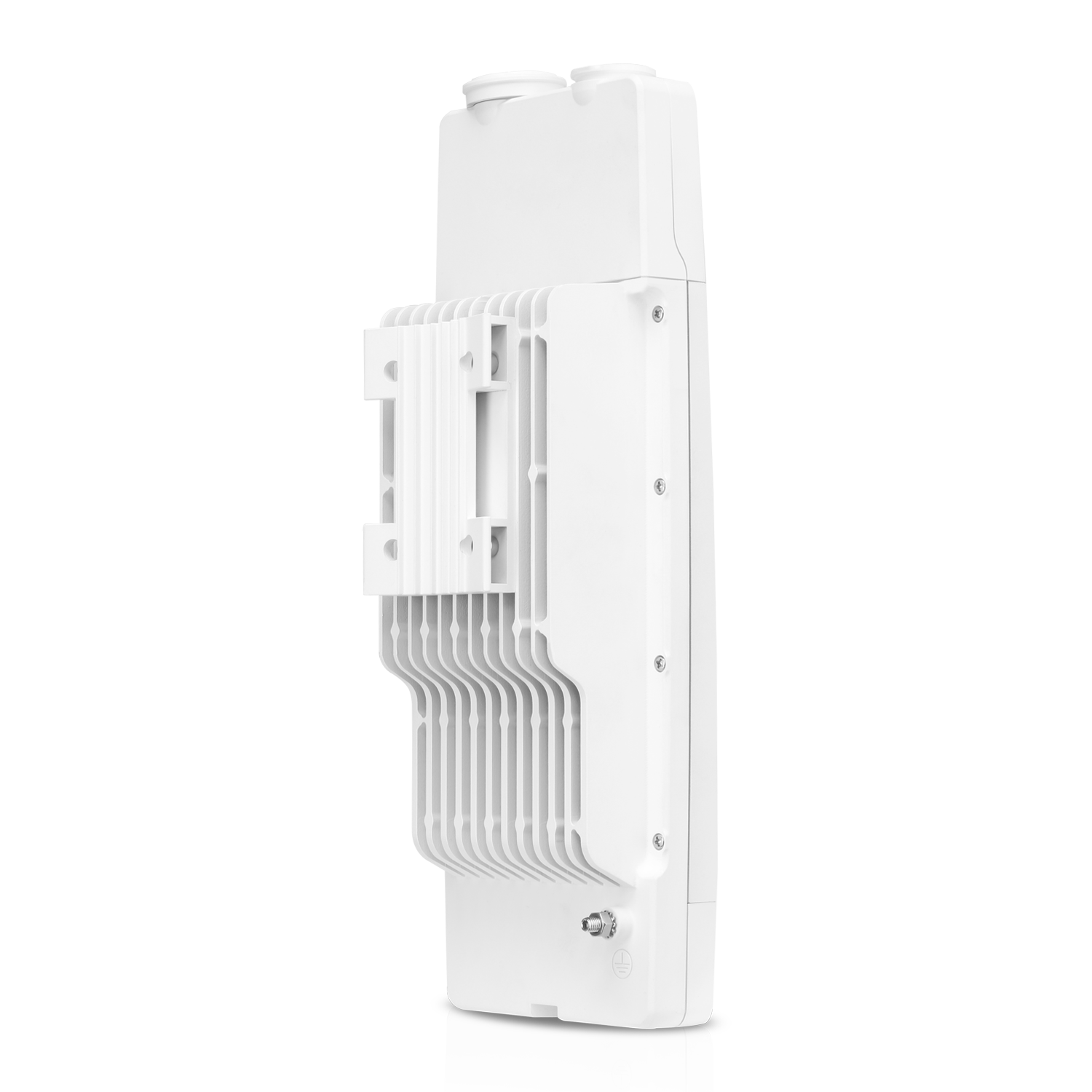

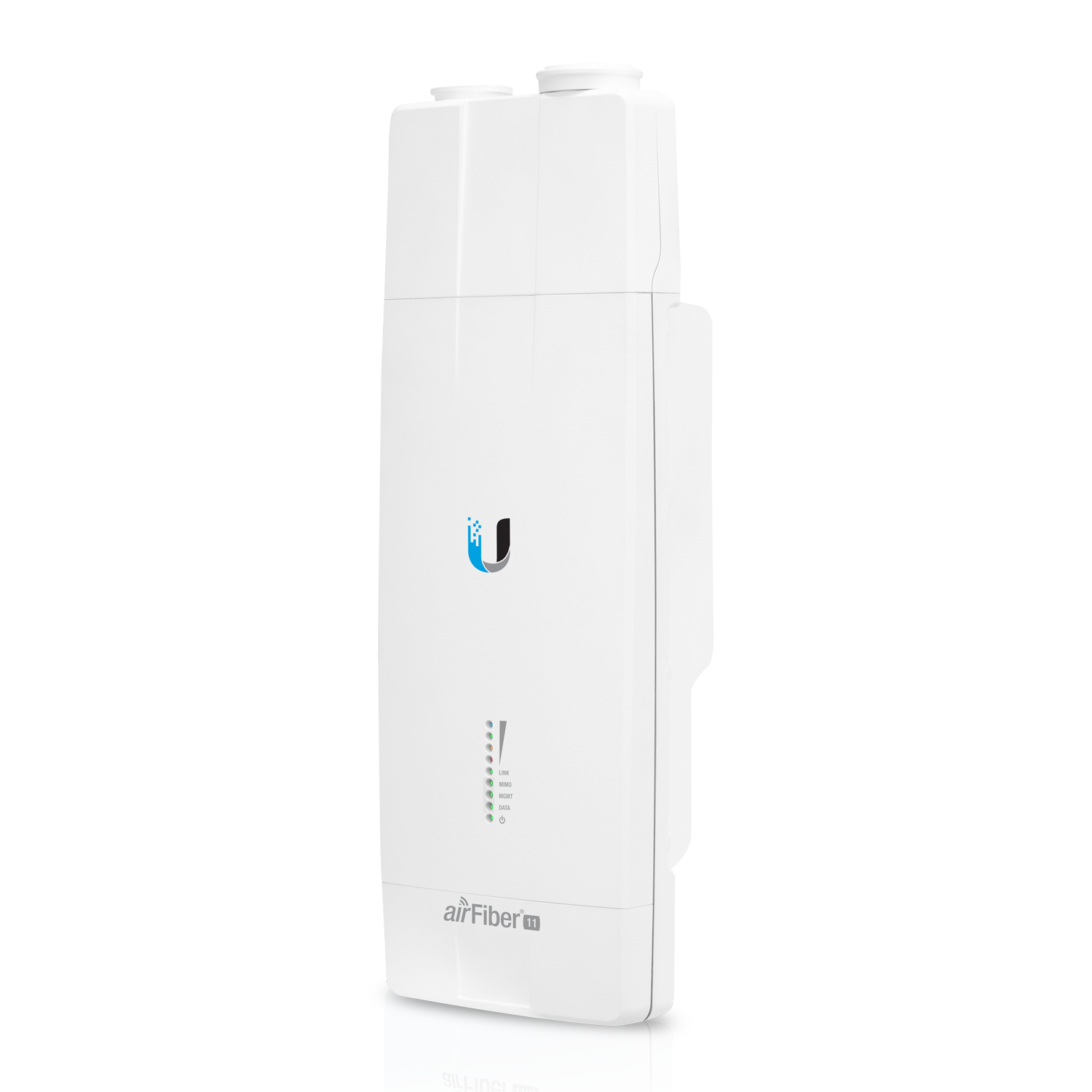

airFiber AF-11
- Dimensions
- 327 x 112 x 86 mm (12.9 x 4.4 x 3.4")
- Weight
- 2.3 kg (5 lb)
- Mounting
- AF-11G35 mount compatible
Donanım
- Networking interface
- (1) GbE RJ45 port
(1) 10/100 MbE RJ45 port - Power method
- Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-)
Terminal block direct-wire - Power supply
- 50V DC, 1.2A gigabit PoE adapter (Included)
- Supported voltage range
- 38-56V DC
- Max. power consumption
- 36W
- RF connectors
- (4) SMA Weatherproof, Two per Chain: TX 0, RX 0 (Chain 0) and TX 1, RX 1 (Chain 1)
(2) N-Type Waterproof, One per Duplexer - Ambient operating temperature
- -40 to 55° C (-40 to 131° F)
- Certifications
- CE, FCC, IC
- NDAA Compliant
- Yes
Yazılım
- Modes
- SISO/MIMO*
* Comes with (1) High-Band Duplexer pre-installed for SISO mode. For MIMO mode, a second Duplexer is available, model AF-11-DUP-H.
Sistem
- Max. throughput
- 1.2+ Gbps
- Max. range
- 300+ km
- Encryption
- 128-bit AES
RF
- Operating frequency*
- 10.7-11.7 GHz
*Depends on regional regulations. - Max. conducted TX power*
- 30 dBm
*Depends on regional regulations. - Frequency accuracy
- ± 1 ppm
- Channel bandwidth*
- 3.5/5/7/10/14/20/ 28/30/40/50/56 MHz selectable**
Programmable Uplink and Downlink duty cycles
* For region-specific details, refer to the Compliance chapter of the airFiber AF-11FX User Guide at ui.com/download/airfiber
**Channel widths may vary according to country/region regulations.

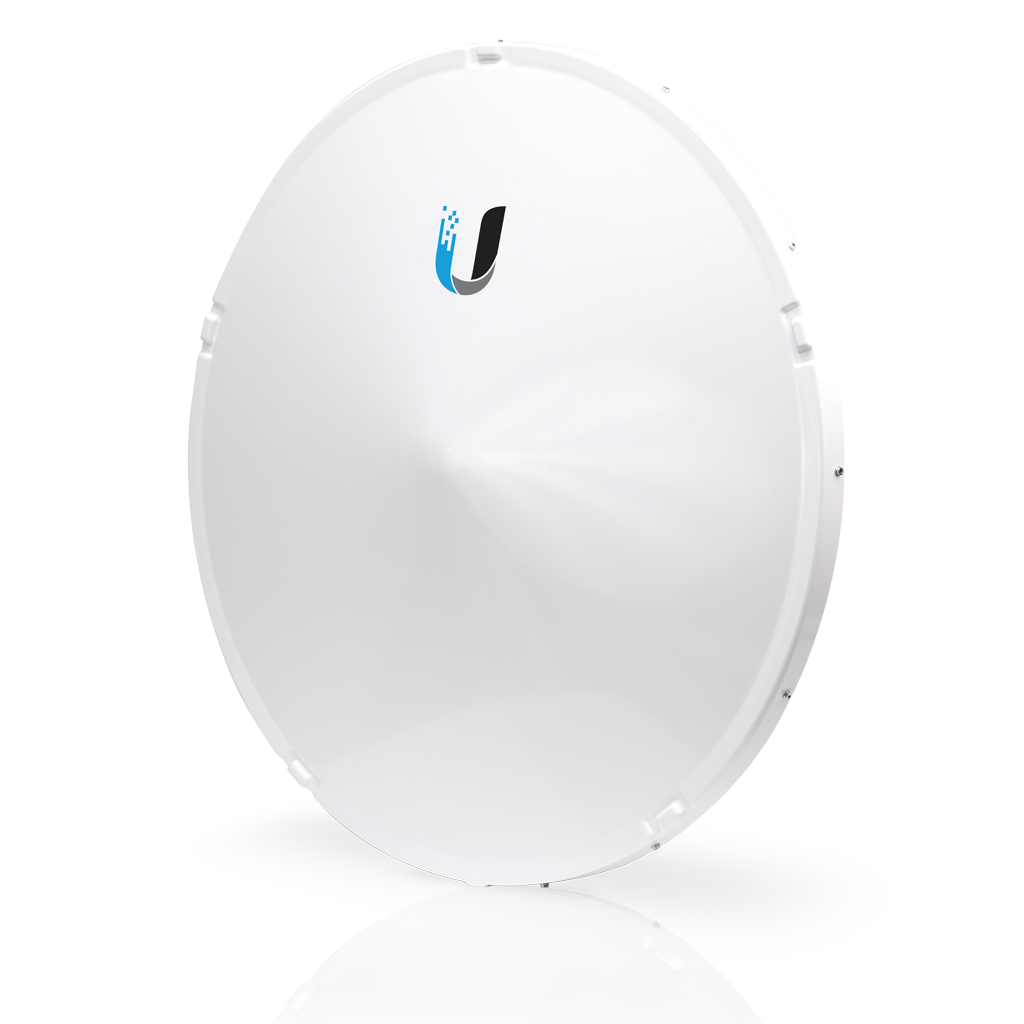

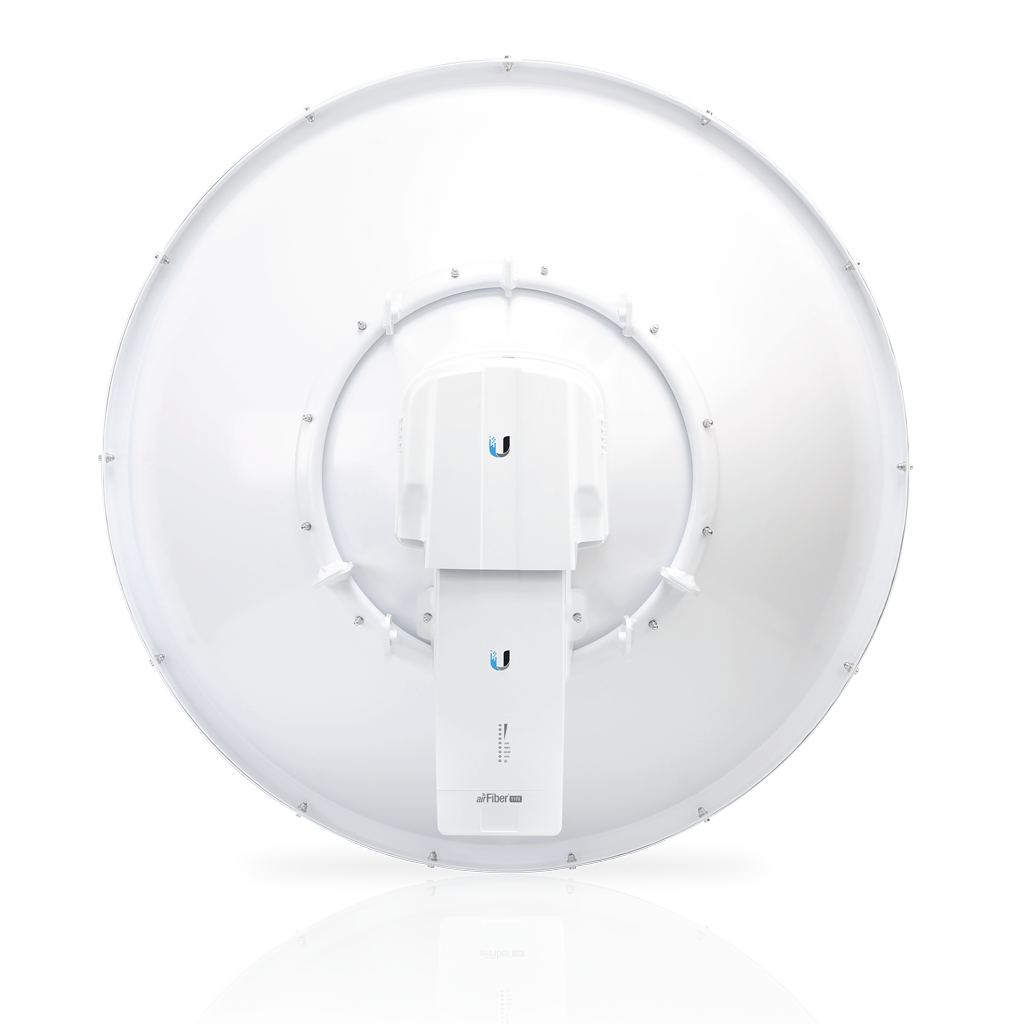

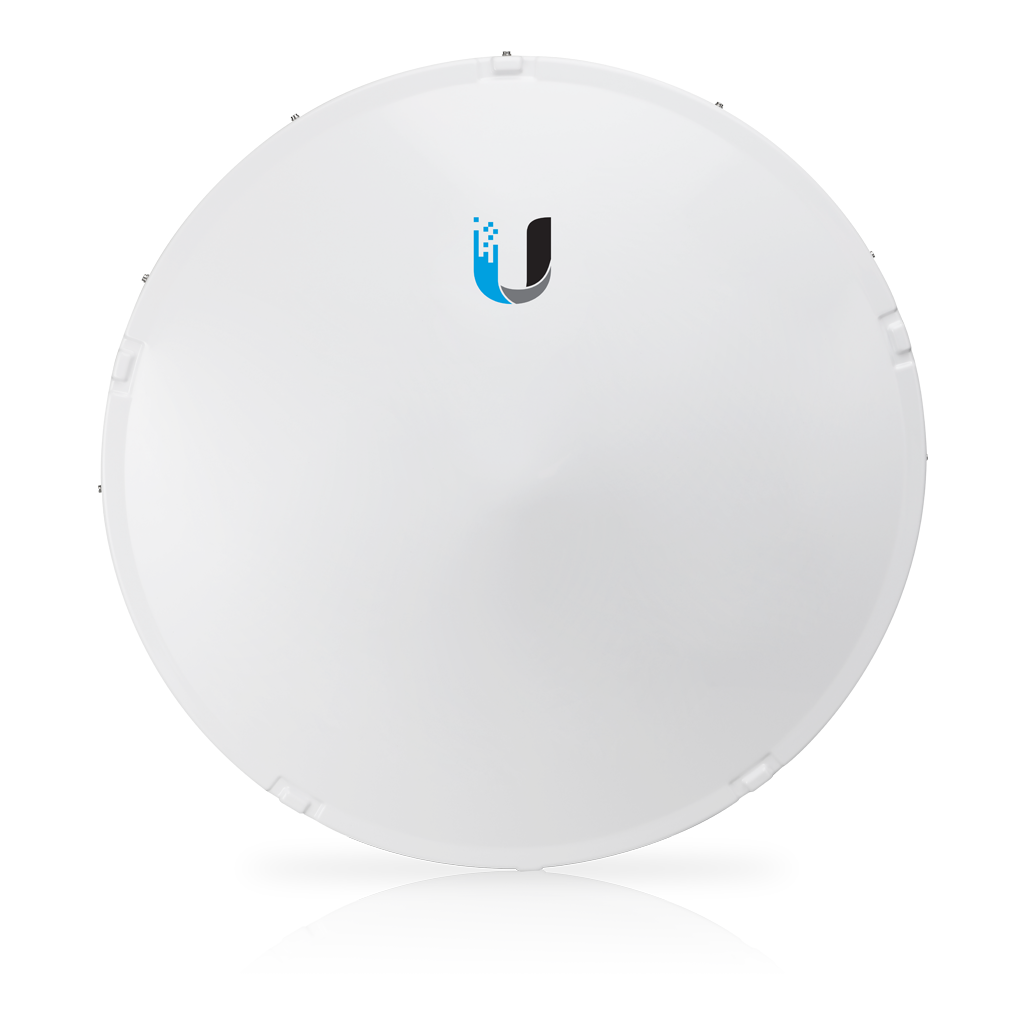

airFiber AF‑11G35
- Dimensions
- 811 x 811 x 460 mm (31.9 x 31.9 x 18.1")
- Weight
- Without mount: 7.14 kg (15.74 lb)
With mount: 11.85 kg (26.12 lb) - Wind loading
- 1538 N @ 200 km/h (346 lbf @ 125 mph)
- Wind survivability
- 200 km/h (125 mph)
- Mounting
- Pole mount
- Frequency
- 10.3 to 11.7 GHz
- Gain
- 35 dBi
- HPOL beamwidth
- 2.5°
- VPOL beamwidth
- 2.5°
- Maximum VSWR
- 2:1
- Polarization
- Default: H/V
After rotating OMT: ± 45° - Cross-pol isolation
- 35 dB
- Pattern regulatory
- ETSI 302 217-4-2, Class 3, FCC Cat B
الأسئلة الشائعة
- Ubiquiti airFiber 11 High-Band Backhaul Radio with Dish Antenna nedir, ne işe yarar?
- Modular airFiber radio system built for the 11 GHz licensed frequency market that breaks free from the 5 GHz band.
- Ubiquiti airFiber 11 High-Band Backhaul Radio with Dish Antenna kimler için uygundur?
- مشاريع شبكات الشركات, مكاملون, فرق IT, شراء بالجملة
- Ubiquiti airFiber 11 High-Band Backhaul Radio with Dish Antenna fiyatı ve stok durumu nedir?
- Proje bazlı teklif için iletişime geçin. Stok: متوفر
- Ubiquiti airFiber 11 High-Band Backhaul Radio with Dish Antenna kurulum ve proje desteği var mı?
- UBNT Networks Mağaza üzerinden toplu alım, kurulum danışmanlığı ve teknik destek talep edebilirsiniz.
- Ubiquiti airFiber 11 High-Band Backhaul Radio with Dish Antenna model kodu (MPN) nedir?
- Resmi model: AF11-Complete-HB. Google Merchant ve teklif süreçlerinde bu kod kullanılır.
