Enterprise Audio/Video switch with (20) 10G SFP+ and (2) 100G QSFP28 uplinks. Supports PTP timing, SMPTE ST 2110, SDVoE, and AES67 audio, with a high-precision OCXO clock and optional GPS grandmaster input (SMA) for deterministic media syncing.
المشاريع والشراء بالجملة
لمشاريع الشركات: استكشاف وقائمة مواد ودعم تركيب لـ Ubiquiti UniFi Enterprise Audio/Video Fiber. أنشئ قائمة العروض وأرسلها دفعة واحدة.
قائمة عروض الأسعار (0) · مقارنة
لمن يناسب؟
- مراكز البيانات
- شبكات المؤسسات
- بنية IP camera و NVR
- مشاريع PoE عالية
حالات الاستخدام
- مشاريع Switch والتحديث
- إدارة مركزية (UniFi / UISP)
- WiFi و switching قابل للتوسع
- دعم فني وتوريد بالجملة
- PoE للكاميرات
- تقسيم VLAN
Ubiquiti UniFi Enterprise Audio/Video Fiber, التبديل kategorisinde Layer 2 ve Layer 3 switching özellikleri sunan kurumsal PoE switch modelidir. Access point, IP kamera ve sunucu trafiğini tek noktadan yönetmenizi sağlar.
Ürün hakkında
Ubiquiti UniFi Enterprise Audio/Video Fiber (EAV-Fiber), yüksek performanslı switching için Switch segmentinde Türkiye'deki UniFi ve Ubiquiti projelerinde sık tercih edilen modellerdendir. UBNT Networks Mağaza üzerinden teknik özellikler, fiyat teklifi, toplu alım ve kurulum danışmanlığı talep edebilirsiniz.
Öne çıkan özellikler
- Boyutlar: 442.4 x 480 x 43.7 mm (17.4 x 18.9 x 1.7")
- 1 GbE RJ45: 1 (1G/100M/10M)
- 10G SFP+: 20 (10G/1G)
- 100G QSFP28: 2 (100G/40G)
- Console: 1
- SMA: 1 (GPS input for Grandmaster clock mode)
Kimler için uygundur?
- مراكز البيانات
- شبكات المؤسسات
- بنية IP camera و NVR
- مشاريع PoE عالية
Kullanım senaryoları
مشاريع Switch والتحديث; إدارة مركزية (UniFi / UISP); WiFi و switching قابل للتوسع.

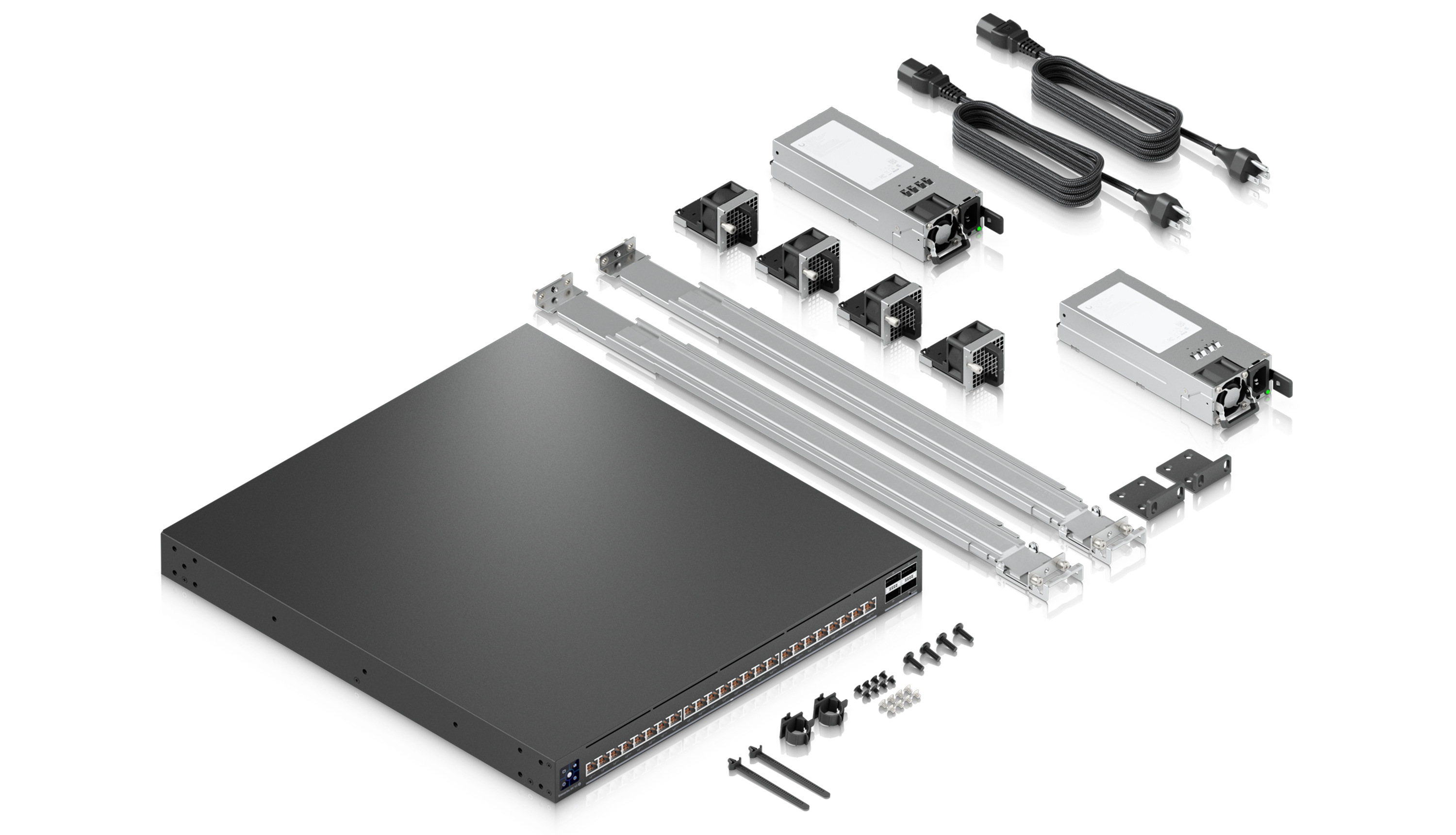

Ubiquiti UniFi Enterprise Audio/Video Fiber için detaylı teknik tablo, kutuda ne var bilgisi ve proje teklifi UBNT Networks Mağaza üzerinden sunulmaktadır.
Genel Bakış
- Dimensions
- 442.4 x 480 x 43.7 mm (17.4 x 18.9 x 1.7")
- 1 GbE RJ45
- 1 (1G/100M/10M)
- 10G SFP+
- 20 (10G/1G)
- 100G QSFP28
- 2 (100G/40G)
- Console
- 1
- SMA
- 1 (GPS input for Grandmaster clock mode)
- Redundancy
- (2) Hot-Swappable PSUs (4) Hot-Swappable Fans
- Form Factor
- Rack Mount (1U, Full-Depth) (Requires a 4-post rack, or a center-mount bracket or cantilever shelf on 2-post racks for optimal support)
Performans
- Switching Capacity
- 800 Gbps
- Total Non-Blocking Throughput
- 400 Gbps
- Forwarding Rate
- 595 Mpps
- Supported VLANs
- 1,000
- MAC Address Table Size
- 32,000
- IPv4 Static Routes
- 512
- Packet Buffer Size
- 8 MB
- IPv4
- 256
- MAC
- 256
Layer 3 Features
Layer 2 Features
Donanım
- Max. Power Consumption
- 150W
- Power Method
- (2) Universal input, 100–240V AC, 50/60 Hz
- Power Input Method
- (2) AC input, Hot-swappable power modules
- Power Supply
- (2) Hot-swappable AC/DC 150W power modules
- Supported Voltage Range
- 100–240V AC
- Management
- Ethernet AR Serial Console
- Heat Dissipation
- 512 BTU/hr
- Weight
- Without mounting brackets: 8.95 kg (19.7 lb) With mounting brackets: 9.05 kg (20 lb)
- Enclosure Material
- SGCC steel
- Mount Material
- SGCC steel
- Supported Rack Depth
- 482.6 mm (19") four-post racks Posts depths ranging from 650 to 1,000 mm (25.6–39.4”)
- LCM Display
- 1.3" touchscreen
- Fan Method
- (4) Hot-swappable fan modules (Fan modules operate with 3 + 1 redundancy)
- ESD Protection
- Air: ± 12KV, contact: ± 8KV
- Ambient Operating Temperature
- -5 to 40° C (23 to 104° F)
- Ambient Operating Humidity
- 10 to 90% noncondensing
- Certifications
- CE, FCC, IC
الأسئلة الشائعة
- Ubiquiti UniFi Enterprise Audio/Video Fiber nedir, ne işe yarar?
- Enterprise Audio/Video switch with (20) 10G SFP+ and (2) 100G QSFP28 uplinks. Supports PTP timing, SMPTE ST 2110, SDVoE, and AES67 audio, with a high-precision OCXO clock and optional GPS grandmaster input (SMA) for deterministic media syncing.
- Ubiquiti UniFi Enterprise Audio/Video Fiber kimler için uygundur?
- مراكز البيانات, شبكات المؤسسات, بنية IP camera و NVR, مشاريع PoE عالية
- Ubiquiti UniFi Enterprise Audio/Video Fiber fiyatı ve stok durumu nedir?
- Proje bazlı teklif için iletişime geçin. Stok: متوفر
- Ubiquiti UniFi Enterprise Audio/Video Fiber kurulum ve proje desteği var mı?
- UBNT Networks Mağaza üzerinden toplu alım, kurulum danışmanlığı ve teknik destek talep edebilirsiniz.
- Ubiquiti UniFi Enterprise Audio/Video Fiber model kodu (MPN) nedir?
- Resmi model: EAV-Fiber. Google Merchant ve teklif süreçlerinde bu kod kullanılır.
