Marka Ubiquiti
Delivers up to 1.5+ Gbps throughput at a range of up to 13+ km.
Tükendi
Proje & toplu alım
Kurumsal projelerde Ubiquiti airFiber 24 için keşif, BOM ve kurulum desteği sunuyoruz. Sepet yerine teklif listenizi oluşturup tek seferde gönderin.
Teklif listem (0 ürün) · Karşılaştır
Kimler için uygun?
- PtP backhaul hatları
- Kırsal ve şehir dışı bağlantılar
- Yüksek kapasiteli kablosuz omurga
Kullanım alanları
- airFiber kurulumları ve yenileme projeleri
- Merkezi yönetim ve bulut kontrol (UniFi / UISP)
- Ölçeklenebilir kurumsal WiFi ve switching
- Teknik destek ve toplu alım tedariki
Delivers up to 1.5+ Gbps throughput at a range of up to 13+ km.
Mekanik
- Boyutlar
- 649 x 426 x 303 mm (25.6 x 16.8 x 11.9")
- Ağırlık
- 10.5 kg (23.2 lb)
- Montaj

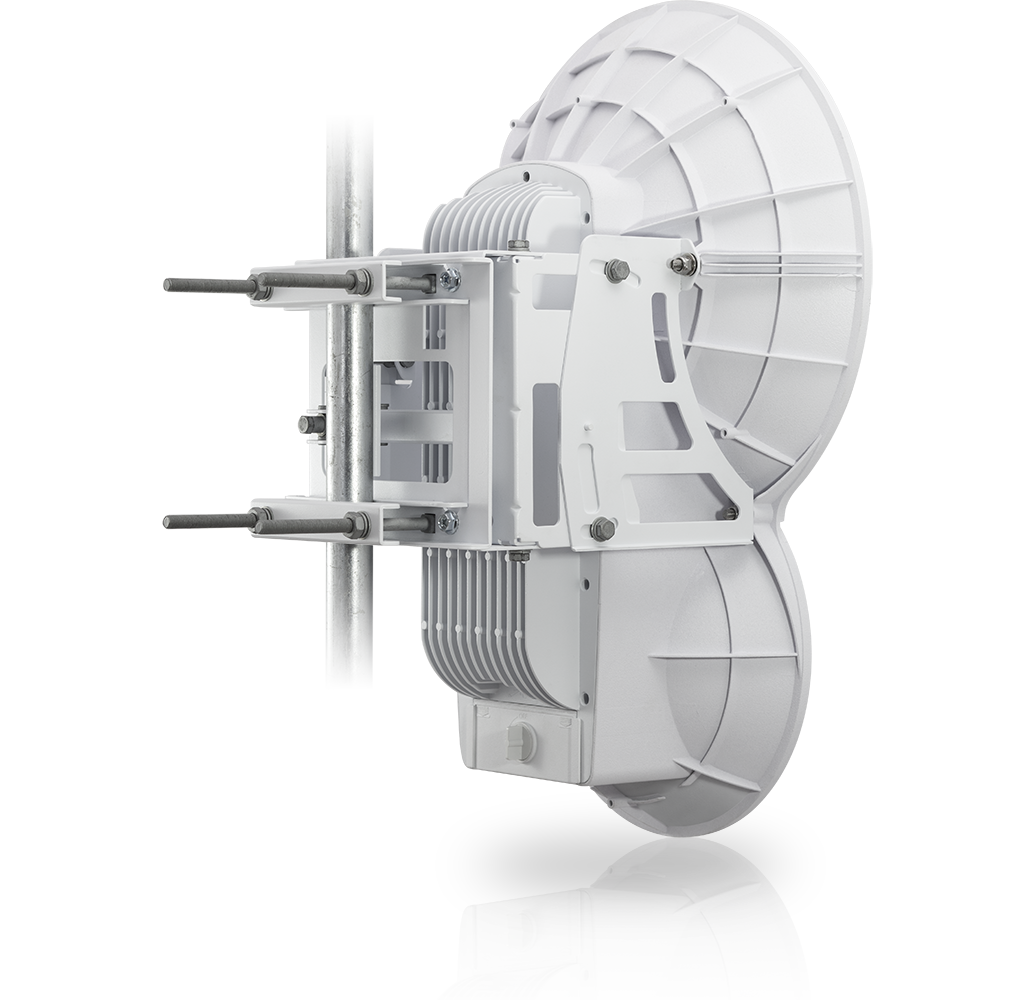

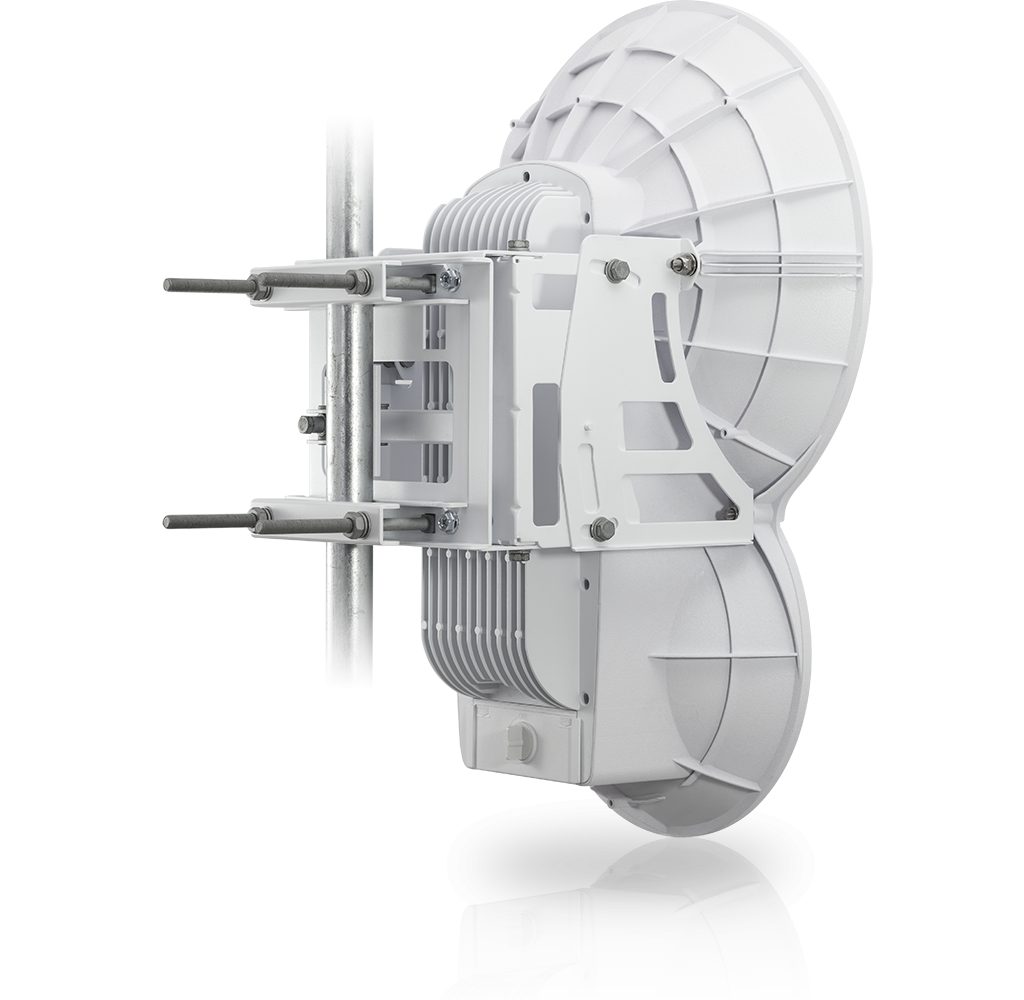

- Pole mount kit (Included)
- Wind loading
- 480 N @ 200 km/h (108 lbf @ 125 mph)
- Wind survivability
- 200 km/h (125 mph)
Donanım
- Networking interface
- (1) GbE RJ45 port
(1) 10/100 MbE RJ45 port - Auxiliary port
- (1) RJ-12, alignment tone port
- Power method
- Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-)
- Power supply

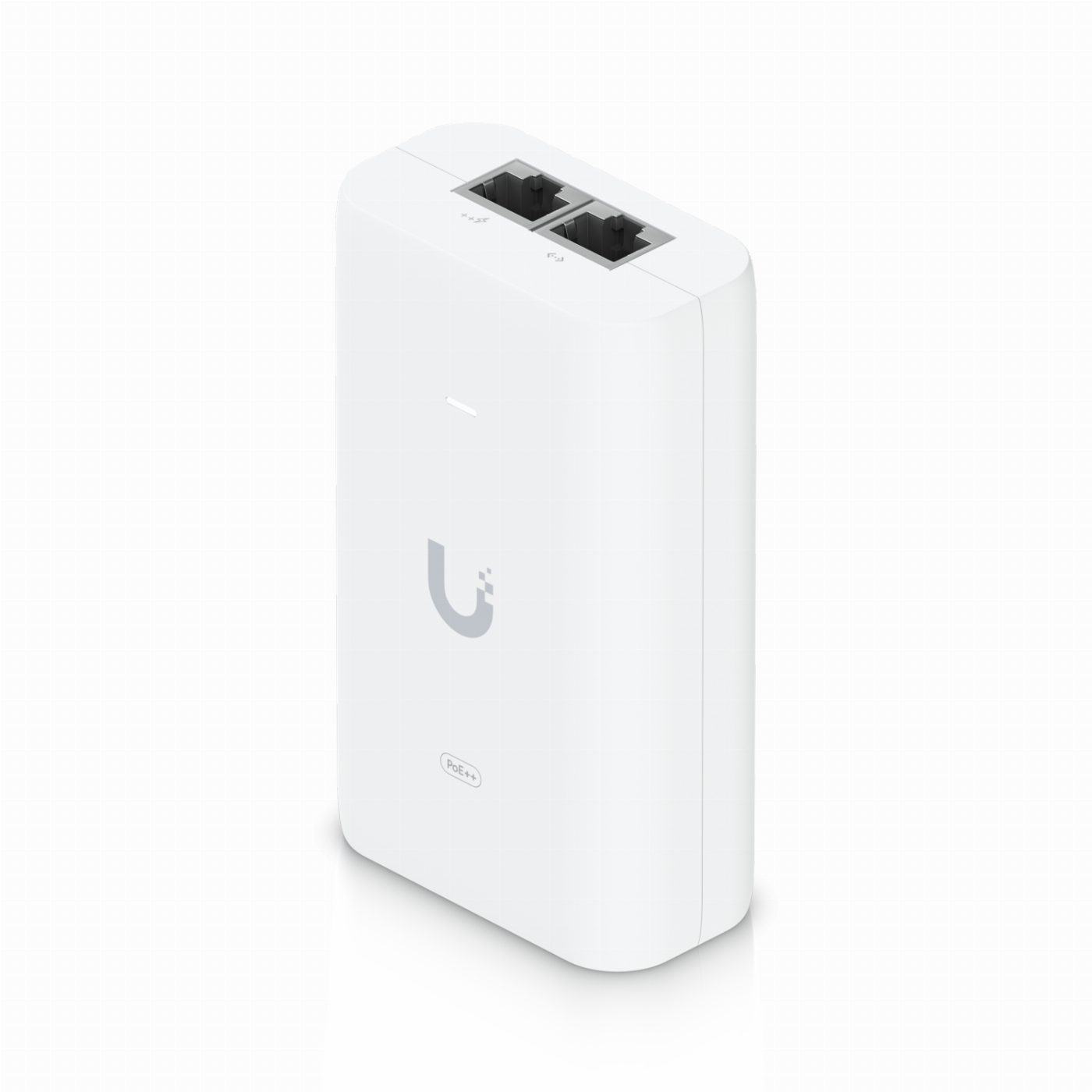

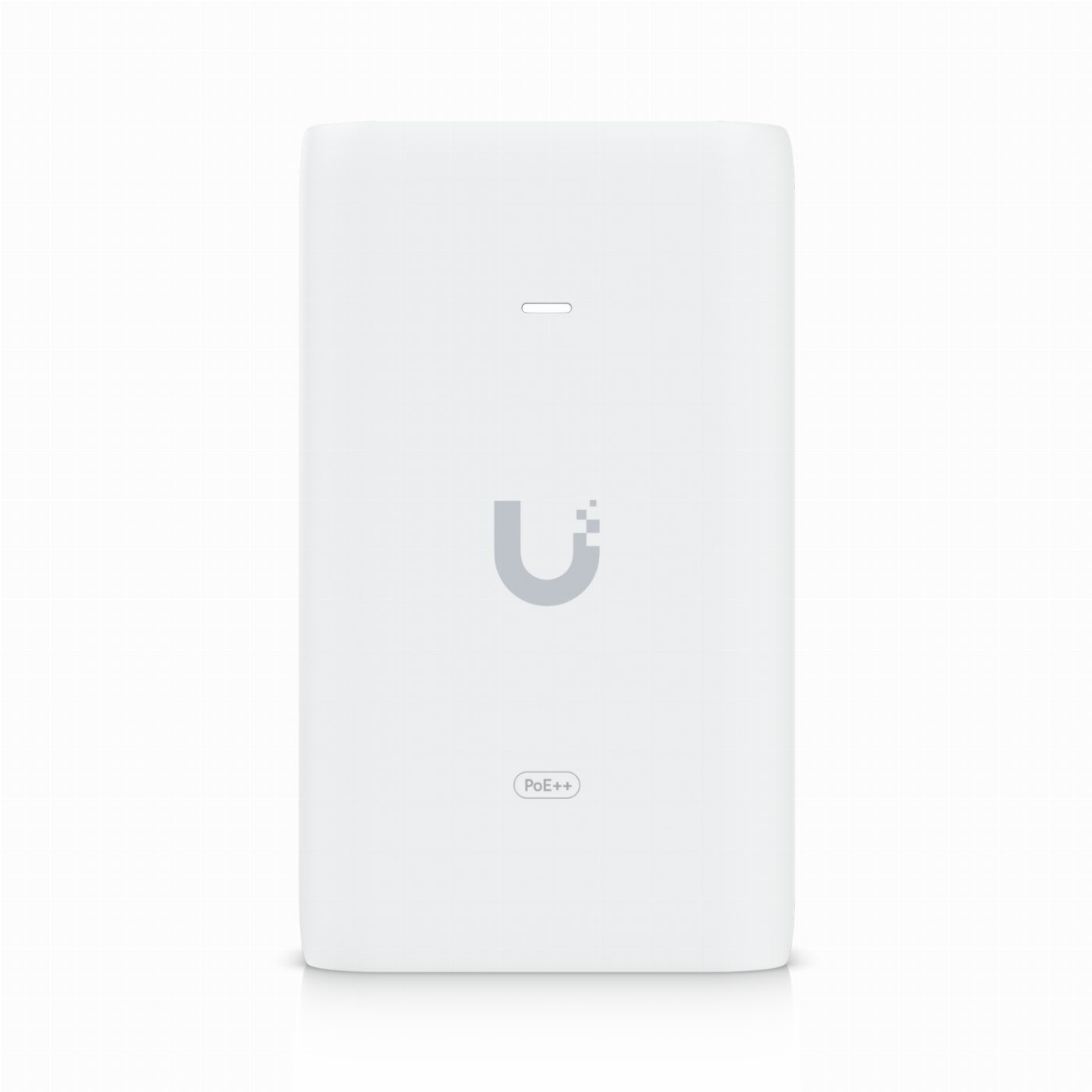

- 50V, 1.2A gigabit PoE adapter (Included)
- Supported voltage range
- 42–58V DC
- Max. power consumption
- 50W
- Operating frequency
- 24.05 – 24.25 GHz
- Ambient operating temperature
- -40 to 55° C (-40 to 131° F)
- Sertifikalar
- CE, FCC, IC
- NDAA Compliant
- Yes
Sistem
- Max. throughput
- 1.5+ Gbps
- Ma. range
- 13+ km
- Packets per second
- 1+ million
- Encryption
- 128-bit AES
- Uplink/Downlink ratio
- Programmable in Half Duplex mode
RF
- GPS
- GPS clock synchronization
- EIRP
- ~33 dBm (FCC/IC)
~20 dBm (CE)
~40 dBm (Other Regions) - Frequency accuracy
- ±2.5 ppm without GPS synchronization
±0.2 ppm with GPS synchronization - Channel bandwidth
- 100 MHz
- Operating frequency
- 24.05 – 24.25 GHz
- Operating channels
- 24.1 GHz, 24.2 GHz
- Modulation
- 64QAM MIMO
16QAM MIMO
QPSK MIMO
QPSK SISO
¼x QPSK SISO - GainTXRX
33 dBi
38 dBi- Beamwidth
- < 3.5°
- Front-to-back ratio
- 70 dB
- Polarization
- Dual-slant
- Cross-polarity Iiolation
- > 28 dB
LEDs
- System
- (8) Status LEDs:
Data port speed
Data port link/activity
Configuration port speed
Configuration port link/activity
GPS synchronization
Modulation mode
Master/slave
RF status
(1) Two-digit LED display calibrated in dBm
Sık sorulan sorular
- Ubiquiti airFiber 24 nedir, ne işe yarar?
- Delivers up to 1.5+ Gbps throughput at a range of up to 13+ km.
- Ubiquiti airFiber 24 kimler için uygundur?
- PtP backhaul hatları, Kırsal ve şehir dışı bağlantılar, Yüksek kapasiteli kablosuz omurga
- Ubiquiti airFiber 24 fiyatı ve stok durumu nedir?
- Proje bazlı teklif için iletişime geçin. Stok: Tükendi
- Ubiquiti airFiber 24 kurulum ve proje desteği var mı?
- UBNT Networks Mağaza üzerinden toplu alım, kurulum danışmanlığı ve teknik destek talep edebilirsiniz.
- Ubiquiti airFiber 24 model kodu (MPN) nedir?
- Resmi model: AF-24. Google Merchant ve teklif süreçlerinde bu kod kullanılır.
Alternatif ürünler
Ubiquiti airFiber 11 High-Band Backhaul Radio with Dish Antenna
Modular airFiber radio system built for the 11 GHz licensed frequency market that breaks free from the 5 GHz band.
Ubiquiti airFiber 11 Low-Band Backhaul Radio with Dish Antenna
Modular airFiber radio system built for the 11 GHz licensed frequency market that breaks free from the 5 GHz band.
Ubiquiti airFiber 24 Hi-Density
Delivers up to 2 Gbps throughput at a range of up to 20+ km.
Uyumlu aksesuarlar
Ubiquiti airFiber 11 High-Band Backhaul Radio with Dish Antenna
Modular airFiber radio system built for the 11 GHz licensed frequency market that breaks free from the 5 GHz band.
Ubiquiti airFiber 11 Low-Band Backhaul Radio with Dish Antenna
Modular airFiber radio system built for the 11 GHz licensed frequency market that breaks free from the 5 GHz band.
Ubiquiti airFiber 24 Hi-Density
Delivers up to 2 Gbps throughput at a range of up to 20+ km.
Ubiquiti airFiber 2X
Create the endpoint of a yüksek performanslı, Point-to-Point (PtP) köprü or network backhaul.
Ubiquiti airFiber 5 High-Band
Compact, wireless point-to-point high-band köprü with a 1.2+ Gbps throughput rate.
Bu ürünle birlikte alınanlar

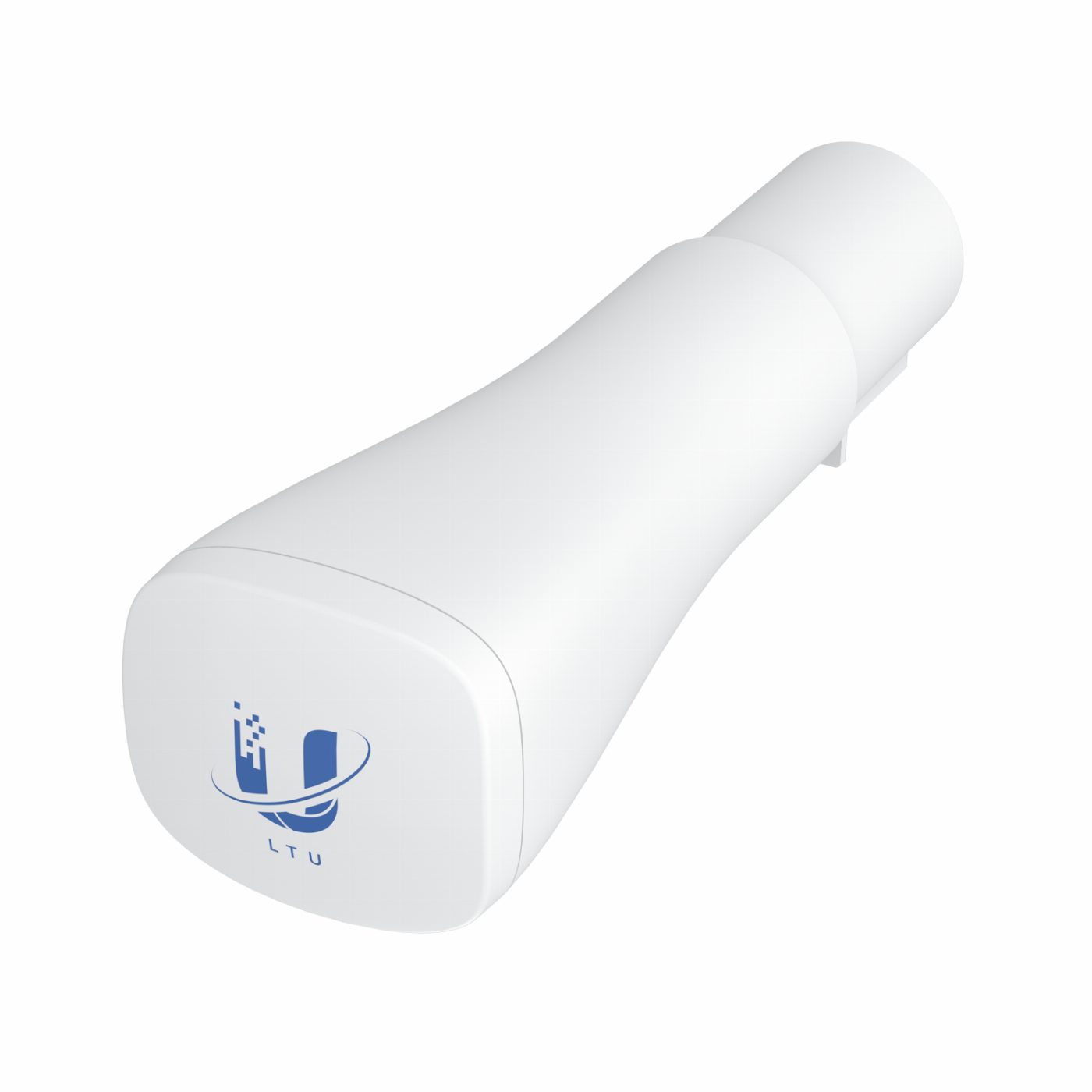

Ubiquiti LTU Instant (5-pack)
