Marka Ubiquiti
Desktop 10G Bulut Geçidi entegre WiFi 7, PoE switch, microSD storage, and full UniFi application support.
Stokta
Proje & toplu alım
Kurumsal projelerde Ubiquiti UniFi Dream Router 7 için keşif, BOM ve kurulum desteği sunuyoruz. Sepet yerine teklif listenizi oluşturup tek seferde gönderin.
Teklif listem (0 ürün) · Karşılaştır
Kimler için uygun?
- KOBİ ve kurumsal ofisler
- Çok şubeli işletmeler
- Ev lab ve power user kurulumları
- Managed service sağlayıcılar
Kullanım alanları
- Gateway kurulumları ve yenileme projeleri
- Merkezi yönetim ve bulut kontrol (UniFi / UISP)
- Ölçeklenebilir kurumsal WiFi ve switching
- Teknik destek ve toplu alım tedariki
- SD-WAN ve güvenlik duvarı entegrasyonu
- Tek konsoldan site yönetimi
Desktop 10G Bulut Geçidi entegre WiFi 7, PoE switch, microSD storage, and full UniFi application support.
Dream Router 7
Özet
- IDS/IPS
- 2.3 Gbps
- Maks. İstemci Sayısı
- 300
- IDS/IPS Verimi
- 2.3 Gbps
Genel Bakış

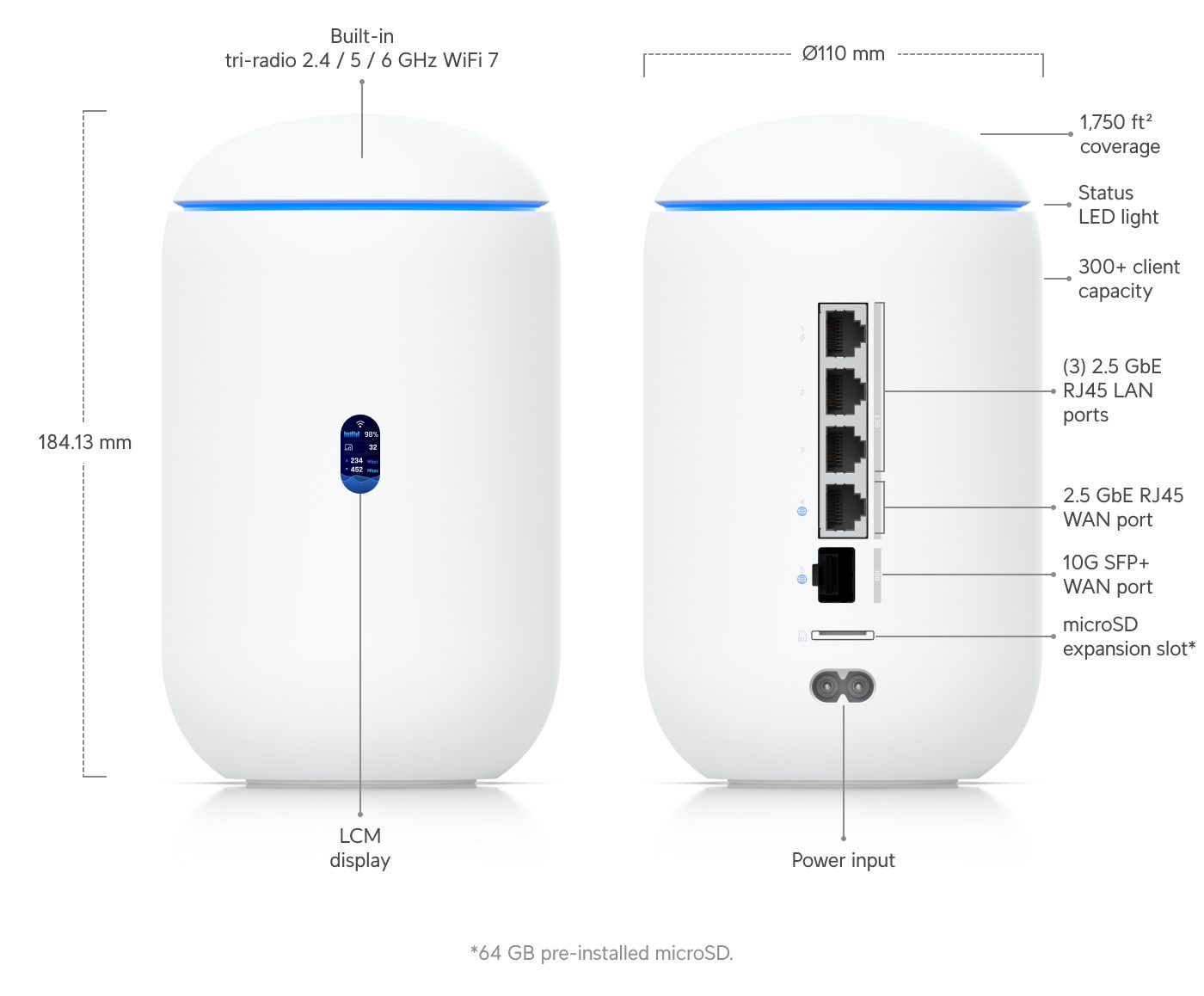

- Boyutlar
- ⌀110 x 184.1 mm (⌀4.3 x 7.3")
- Yönetilen UniFi Cihazları
- 30+
- Yönetilen Kameralar
- (5) HD (2) 2K (1) 4K
- Eşzamanlı Bağlı Kullanıcı
- 300+
- Maks. WAN Port Sayısı
- 4
- Varsayılan WAN Portları
- (1) 10G SFP+ (1) 2.5 GbE RJ45
- 2.5 GbE RJ45
- 4 (1 PoE) (2.5G/1G/100M/10M)
- 10G SFP+
- 1 (10G/1G)
- IDS/IPS Verimi
- 2.3 Gbps
- Form Faktörü
- Compact desktop
- Kapsama Alanı
- 160 m² (1,750 ft²)
Security
- IDS/IPS İmzaları
- 20,000+ with CyberSecure
VPN & SD-WAN
Ağ
- MAC Address Table Size
- 2,000
- All Traffic Flows
- (Blocked traffic only)
Integrated WiFi
- WiFi Standardı
- 802.11a/b/g/n/ac/ax/be (WiFi 6/6E, WiFi 7)
- 6 GHz
- 5.7 Gbps
- 5 GHz
- 4.3 Gbps
- 2.4 GHz
- 688 Mbps
- 6 GHz
- 2 x 2 (DL/UL MU-MIMO)
- 5 GHz
- 2 x 2 (DL/UL MU-MIMO)
- 2.4 GHz
- 2 x 2 (DL/UL MU-MIMO)
- 6 GHz
- 6 dBi
- 5 GHz
- 7 dBi
- 2.4 GHz
- 5 dBi
- 6 GHz
- 24 dBm
- 5 GHz
- 26 dBm
- 2.4 GHz
- 23 dBm
- Wireless Security
- WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)
- Maks. BSSIDs
- 4 per Radio
- 802.11be (WiFi 7)
- 7.3 Mbps to 5.7 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320)
- 802.11ax (WiFi 6/6E)
- 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
- 802.11ac (WiFi 5)
- 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
- 802.11n
- 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
- 802.11g
- 6, 9, 12, 18, 24, 36, 48, 54 Mbps
- 802.11b
- 1, 2, 5.5, 11 Mbps
- 802.11a
- 6, 9, 12, 18, 24, 36, 48, 54 Mbps
Donanım
- NVR Depolama

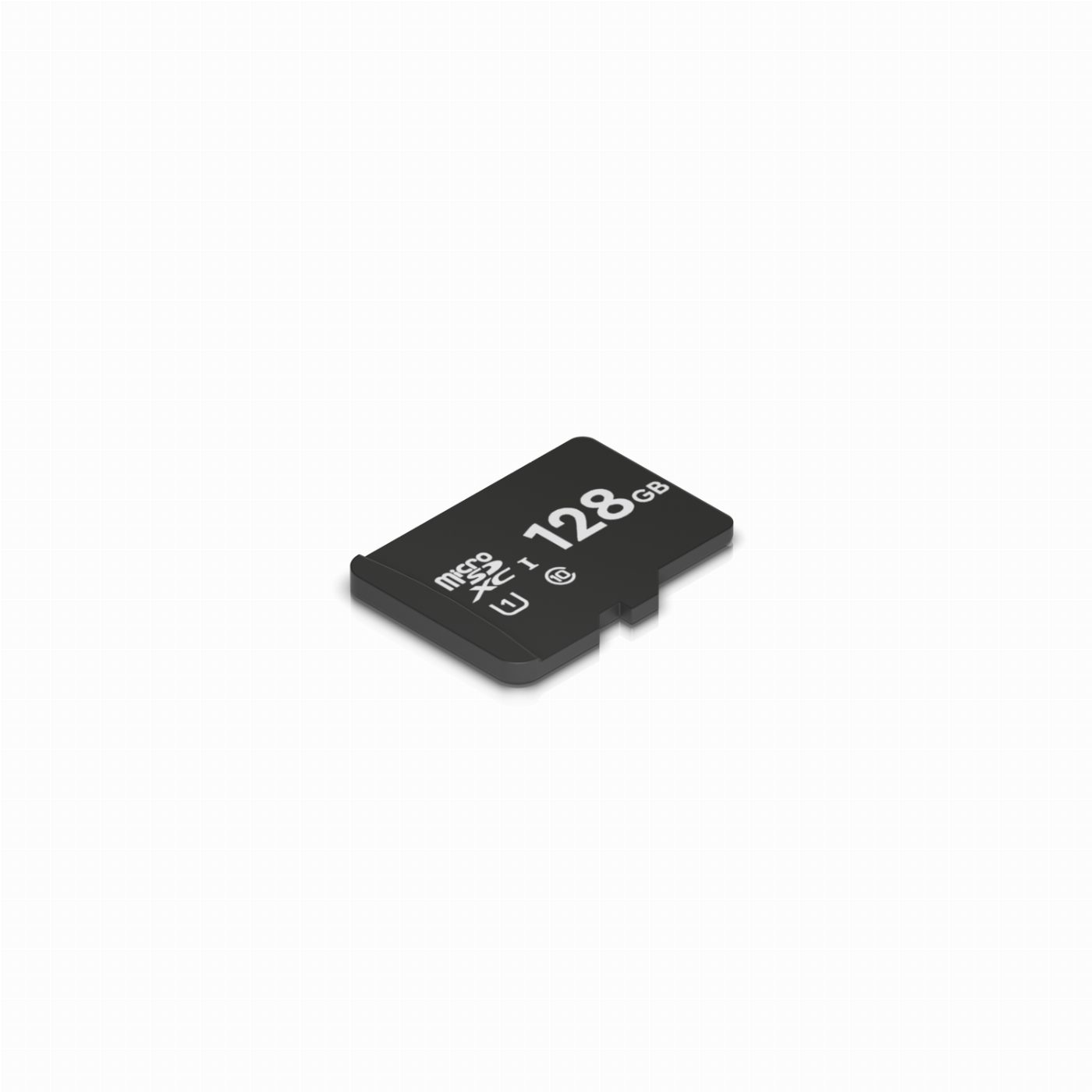

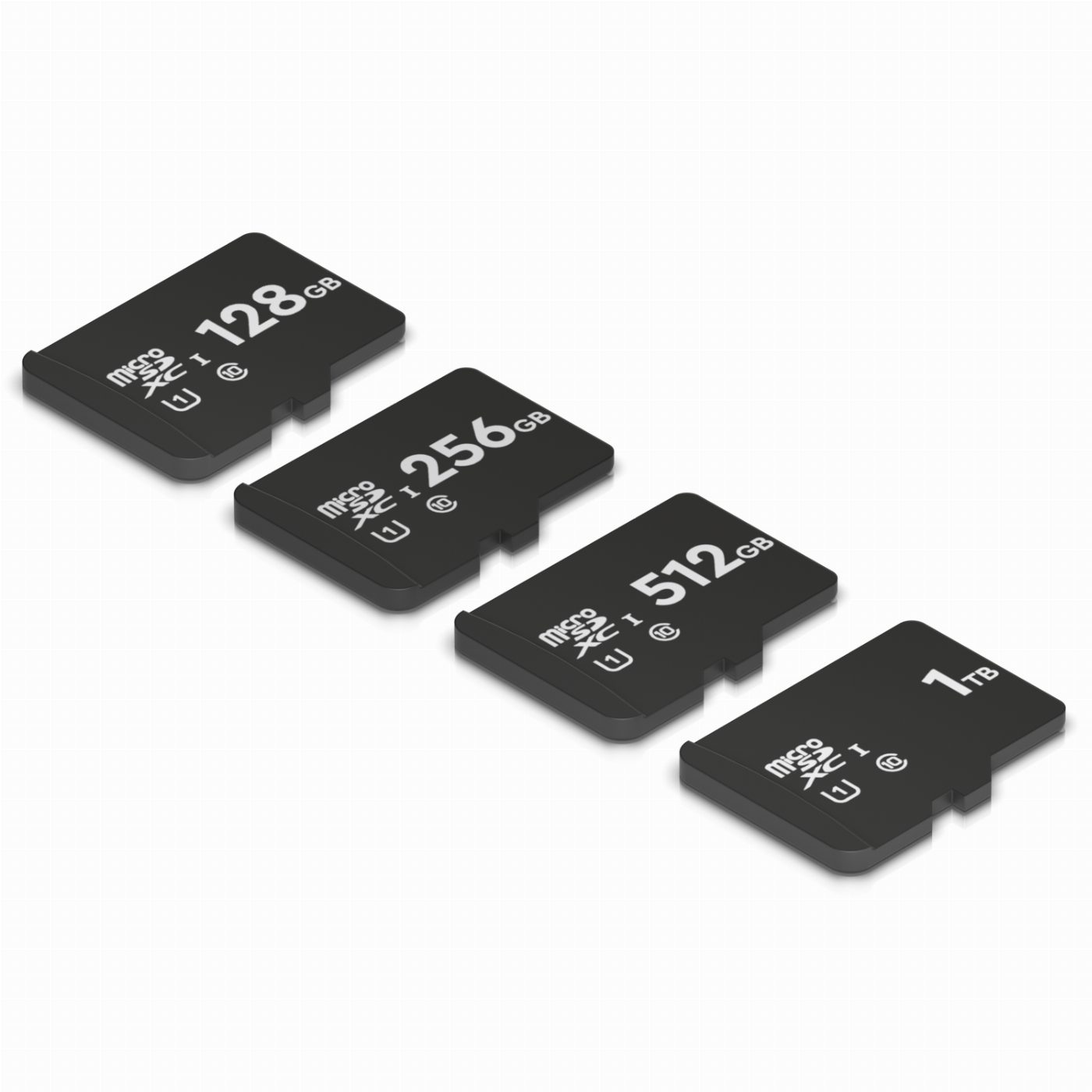

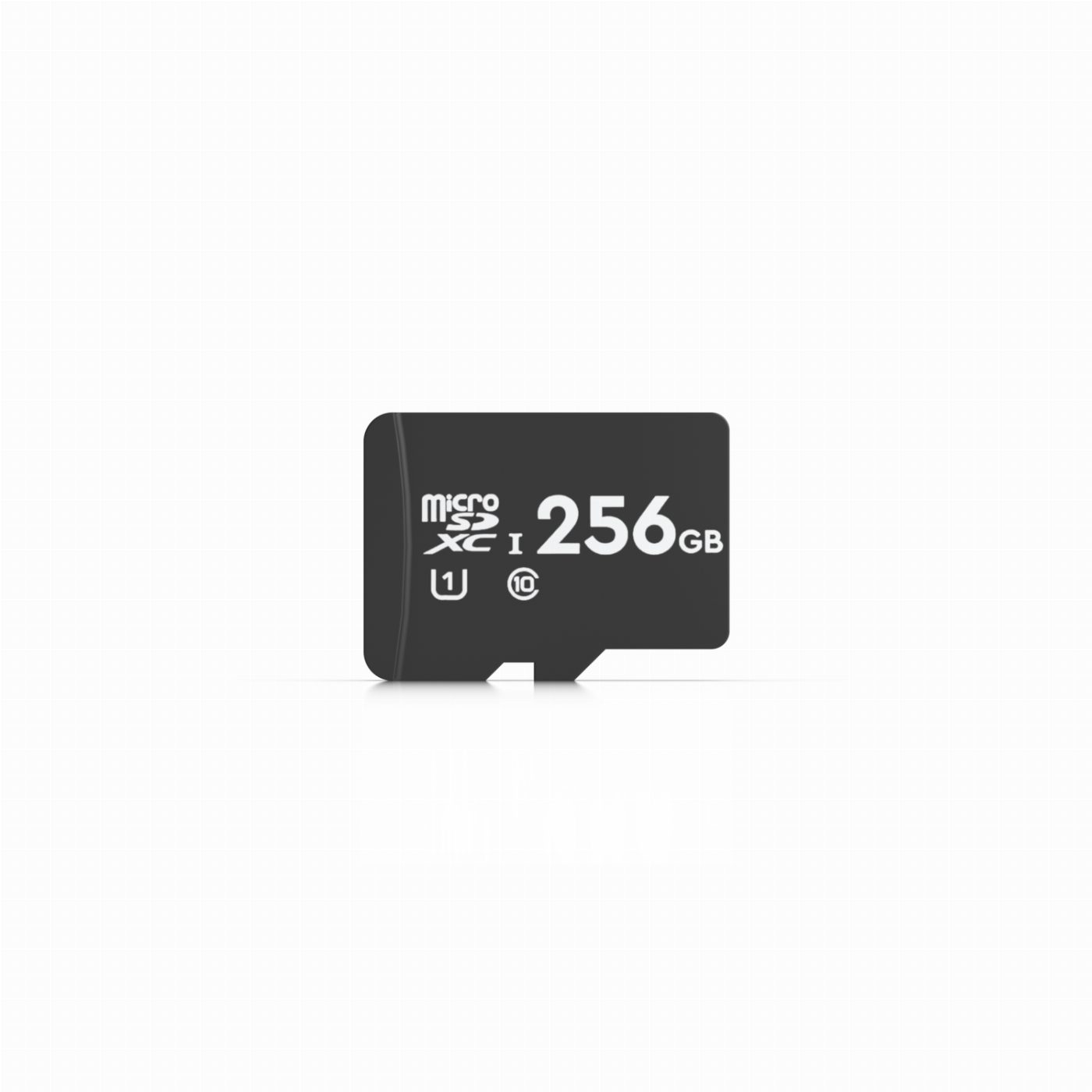

- Pre-installed 64GB microSD for NVR
- Expansion Slot
- MicroSD Card (64 GB pre-installed microSD)
- PoE Bütçesi
- 15.4W
- PoE
- 15.4W
- Voltage Range PoE Mode
- 44-57V
- Maks. Power Tüketimi
- 26W (Excluding PoE output)
- Güç Yöntemi
- Universal AC input, 100–240V AC, 1.5A Max, 50/60 Hz
- Power Supply
- AC/DC, Internal, 50W
- Desteklenen Gerilim Aralığı
- 100–240V AC
- Heat Dissipation
- 89 BTU/hr (Excluding PoE Output)
- İşlemci
- Quad-core ARM® Cortex®-A53 at 1.5 GHz
- Sistem Belleği
- 3 GB
- Ağırlık
- 1.1 kg (2.4 lb)
- Kasa Malzemesi
- Polycarbonate
- LCM Ekran
- 0.96" status display
- Yönetim
- Ethernet Bluetooth
- Button
- (1) Factory reset
- ESD/EMP Koruma
- Air: ± 8kV, contact: ± 4kV
- Çalışma Sıcaklığı
- -10 to 40° C (14 to 104° F)
- Çalışma Nemi
- 5 to 95% noncondensing
- Sertifikalar
- CE, FCC, IC, Anatel: 05650-25-08356
Yazılım
- VLAN
- 802.1Q
- UniFi Network
- Version 9.0.108 and later
Sık sorulan sorular
- Ubiquiti UniFi Dream Router 7 nedir, ne işe yarar?
- Desktop 10G Bulut Geçidi entegre WiFi 7, PoE switch, microSD storage, and full UniFi application support.
- Ubiquiti UniFi Dream Router 7 kimler için uygundur?
- KOBİ ve kurumsal ofisler, Çok şubeli işletmeler, Ev lab ve power user kurulumları, Managed service sağlayıcılar
- Ubiquiti UniFi Dream Router 7 fiyatı ve stok durumu nedir?
- Proje bazlı teklif için iletişime geçin. Stok: Stokta
- Ubiquiti UniFi Dream Router 7 kurulum ve proje desteği var mı?
- UBNT Networks Mağaza üzerinden toplu alım, kurulum danışmanlığı ve teknik destek talep edebilirsiniz.
- Ubiquiti UniFi Dream Router 7 model kodu (MPN) nedir?
- Resmi model: UDR7 (15W). Google Merchant ve teklif süreçlerinde bu kod kullanılır.
